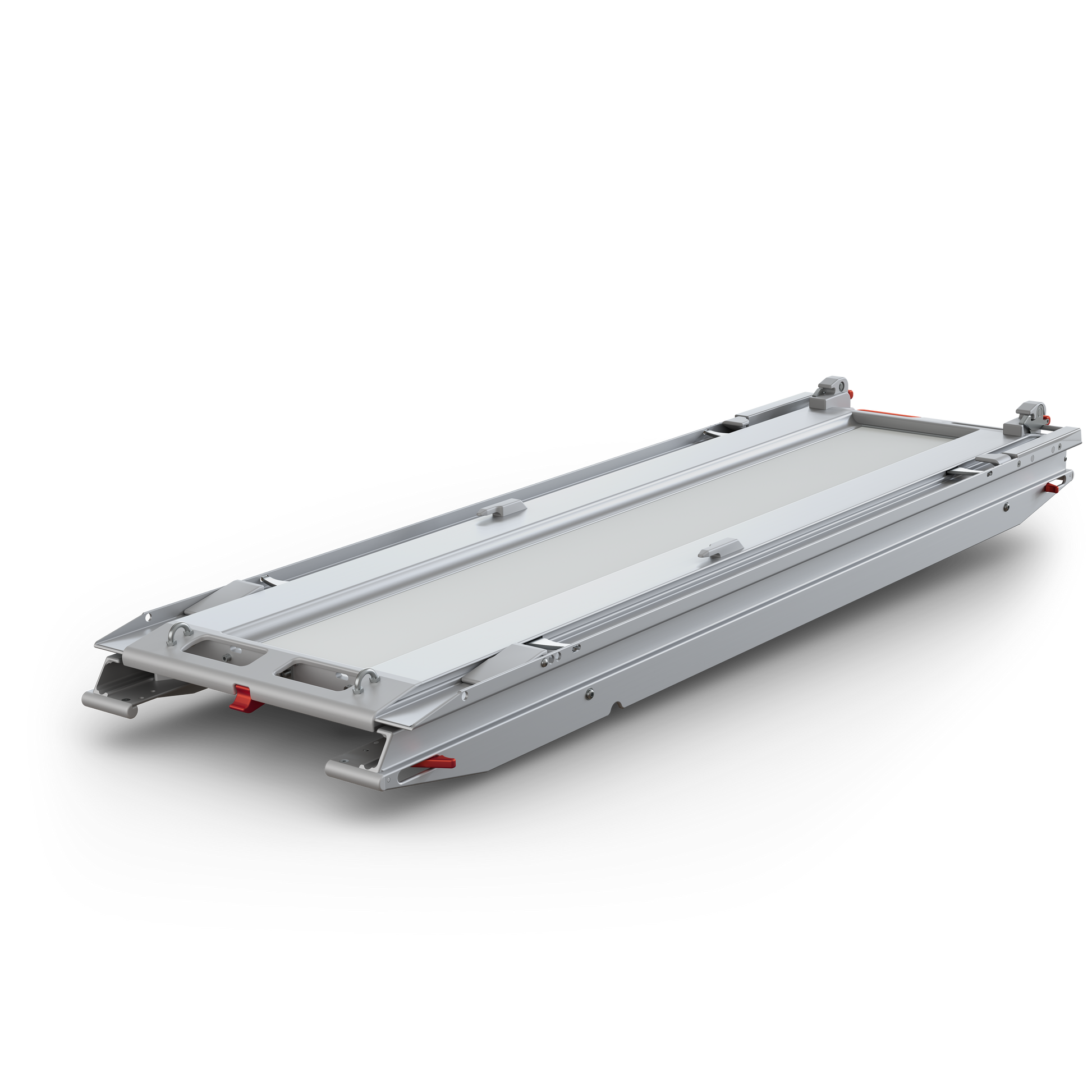

  • ProMIL 150 stretcher loading system

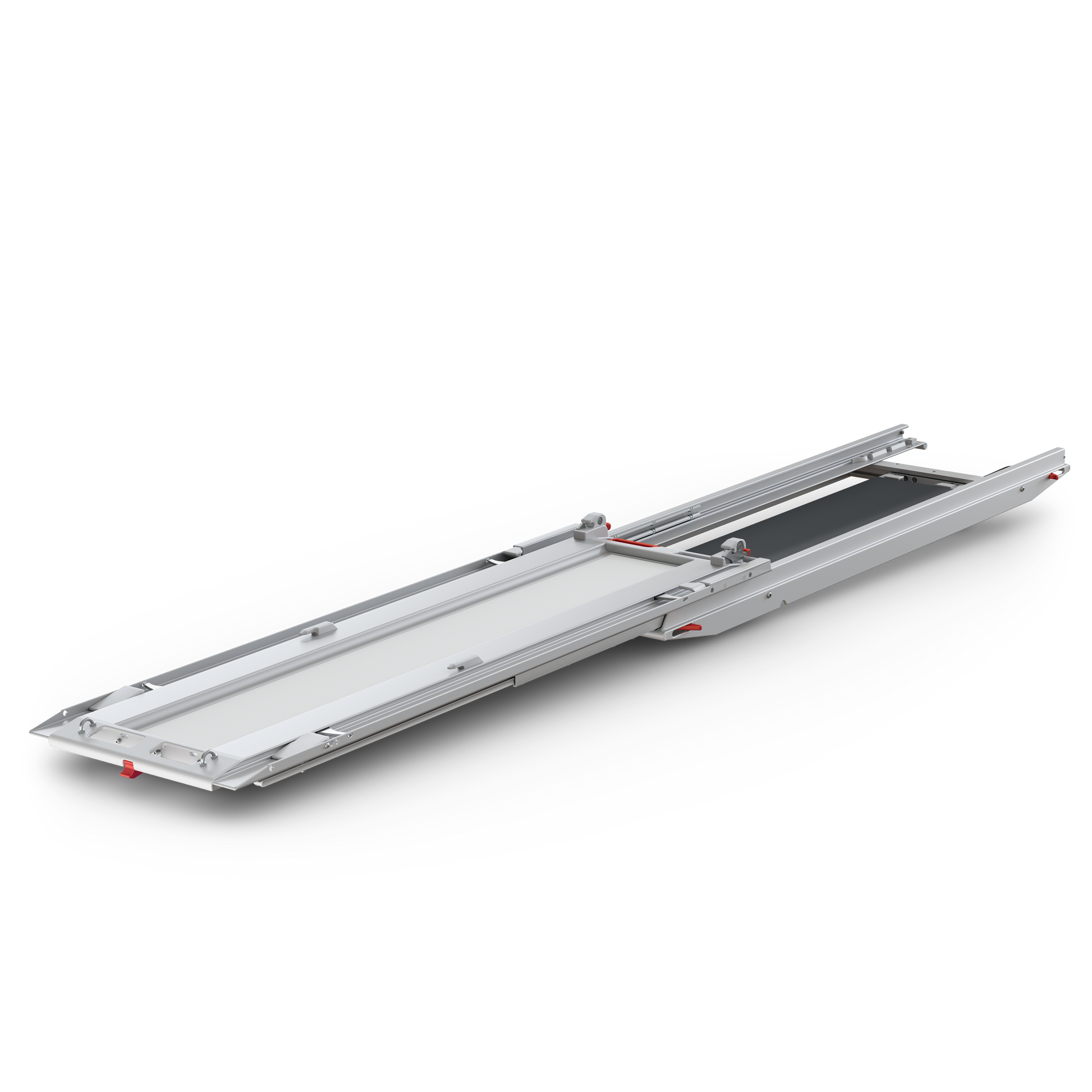

  • ProMIL 150 stretcher loading system in loading position
  • ProMIL 150 stretcher loading system sideways adjustments

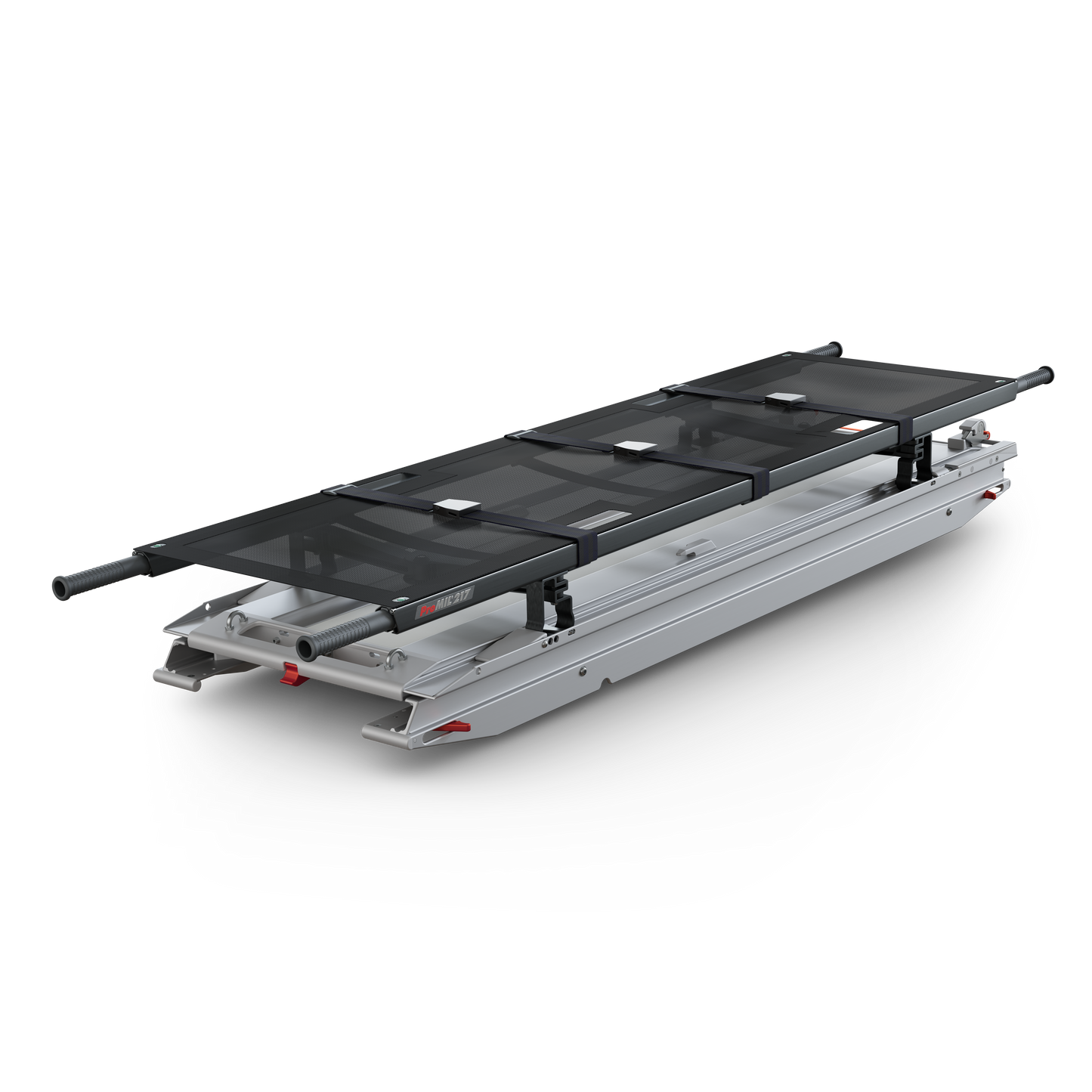

  • ProMIL 150 stretcher loading system loaded with ProMIL 217 NATO field stretchers
1 4

ProMIL 150 Sideways Sliding Military Stretcher Platform

ProMIL 150 Sideways Sliding Military Stretcher Platform

Contact us about this product

The ProMIL 150 is a manual stretcher loading system designed for use in military ambulances and medevac vehicles. It supports both wheeled main stretchers and AMedP-2.1 (STANAG 2040) NATO field stretchers, making it a versatile and reliable solution for diverse patient transport needs.

The ProMIL 150 ensures safe and efficient patient handling in both combat and non-combat medical transport settings.

Product features

  • Compatibility: Supports AMedP-2.1 (STANAG 2040) NATO field stretchers, and wheeled stretchers, such as ProMIL Wheels, Pensi CARBON and Ergomy CARBON.
  • Manual Operation: Entirely manual, with no electrical components, ensuring simplicity and reliability in various conditions.
  • Configurable Loading Angle: The loading height and angle can be configured between 2˚ and 4˚ using tools during vehicle integration, accommodating different vehicle designs (floor heights).
  • Durable Construction: Made from anodized aluminum and stainless steel, the system is built to withstand heavy use with minimal maintenance, in the most demanding operational environments.
  • Flexible Positioning: Offers 120 mm lateral displacement each way and 200 mm forward extension, allowing for precise positioning within the vehicle.
  • Safety Standards: Compliant with EN 1865-5 and EN 1789:2020 dynamic testing, ensuring rigorous safety and performance standards are met.
  • Robust Capacity: Handles up to 230 kg payload.
  • User Interface: Simple and intuitive controls for sliding movement release and sideways adjustments.
  • Service Life: Up to 8 years with regular manufacturer-approved maintenance and critical component replacement schedules.

Compatibility

Technical data

  • Dimensions:
    Minimum (LxWxH) 1935 x 600 x ~250 mm in transport position;
    Maximum (LxWxH) 3400 x 600 x ~250 mm in loading position.
  • Weight: Approximately 72 kg.
  • Loading Angle: Adjustable between 2˚ and 4˚.
  • Operating Temperature: -35°C to +49°C.
