ProMIL 245 Wall Mounted Stretcher Loading System

ProMIL 245 Wall Mounted Stretcher Loading System

Contact us about this product

ProMIL 245 is the pinnacle of manually operated stretcher loading systems (SLS), offering exceptional ergonomics and configurability for a broad range of vehicle shapes and sizes. Engineered for military use, this system ensures safe and reliable patient handling in challenging environments.

The ProMIL 245 facilitates straightforward loading and unloading, providing exceptional performance without the need for electrical components. Additionally, the wall-mounted design offers qualified mine-blast safety, maintaining operational integrity in hostile environments.

Product features

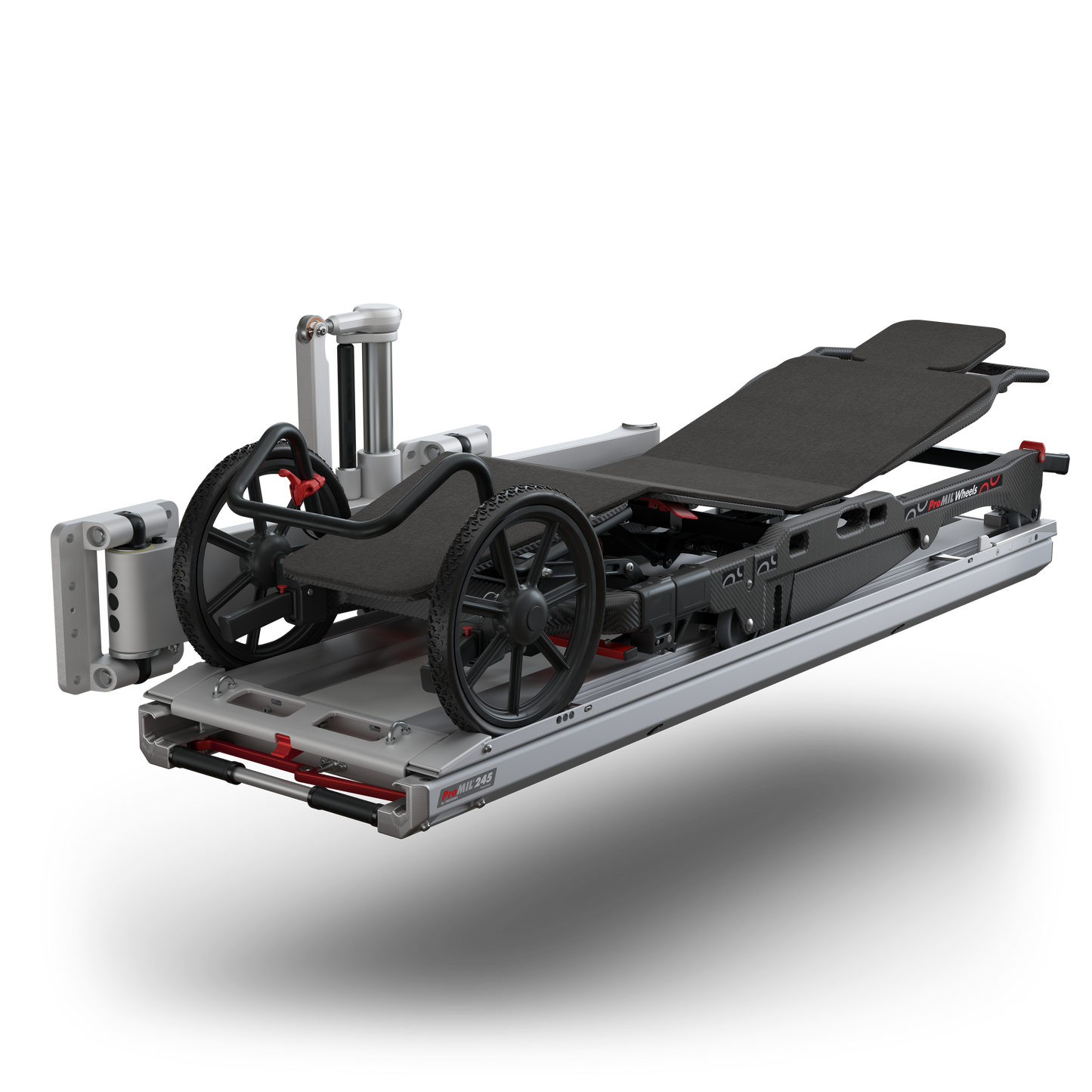

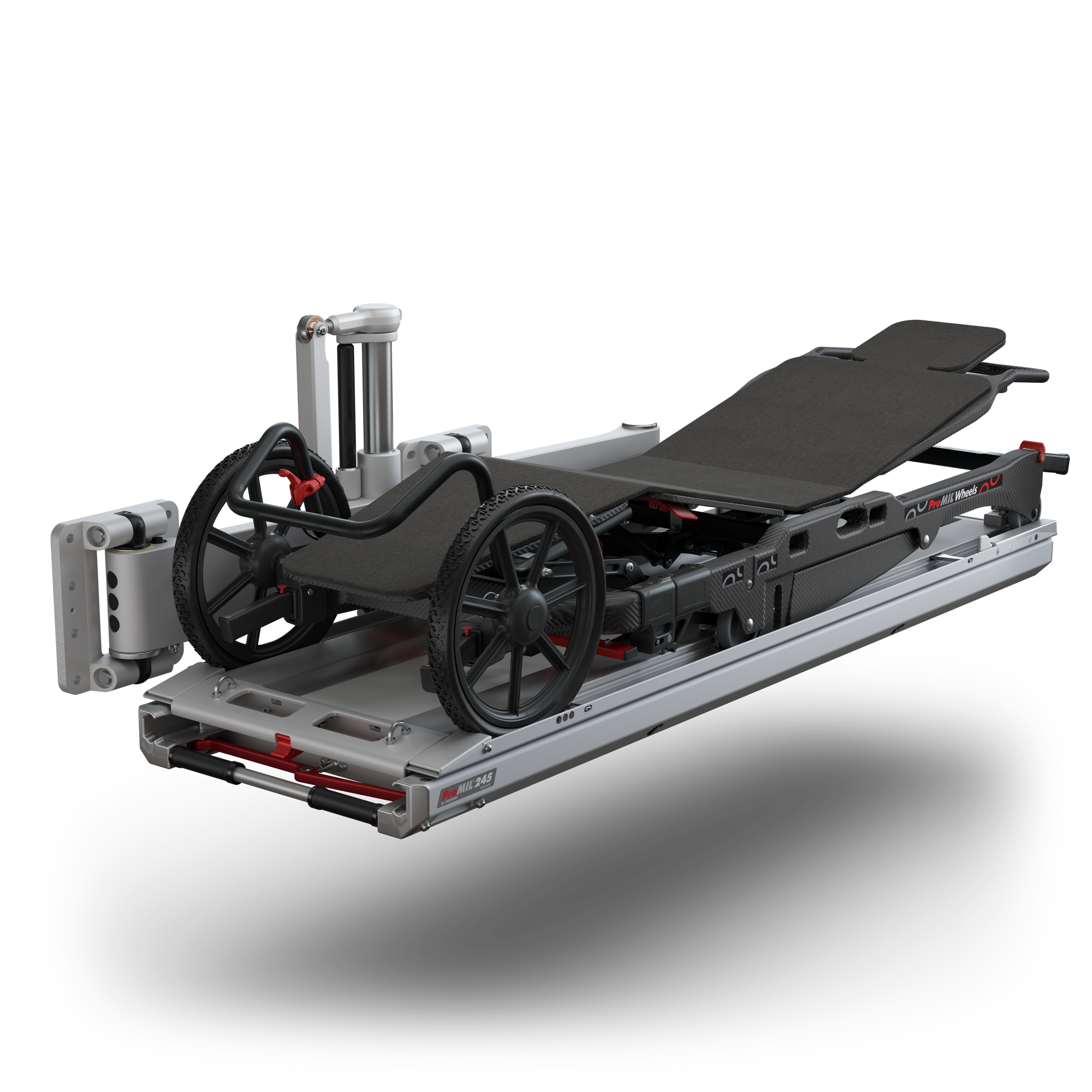

  • Compatibility: Supports NATO field stretchers complying with AMedP-2.1 (STANAG 2040), as well as wheeled main stretchers such as ProMIL Wheels, Pensi CARBON, and Ergomy CARBON.
  • Ergonomic Design: The stretcher platform tilts and turns out of the vehicle back door, creating an ergonomic loading height. Gas spring assistance stores energy to provide force to aid in the loading process, reducing physical strain on operators.

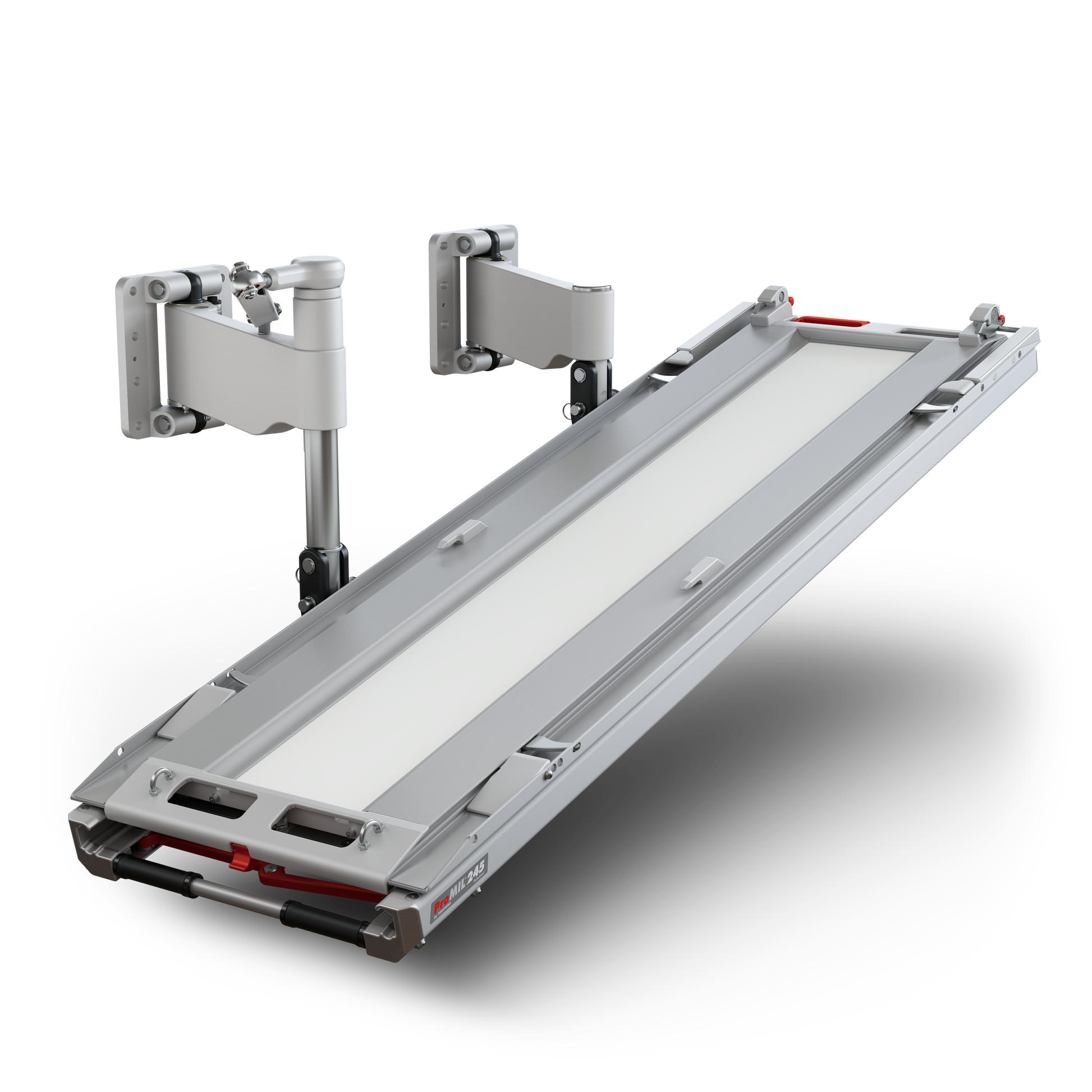

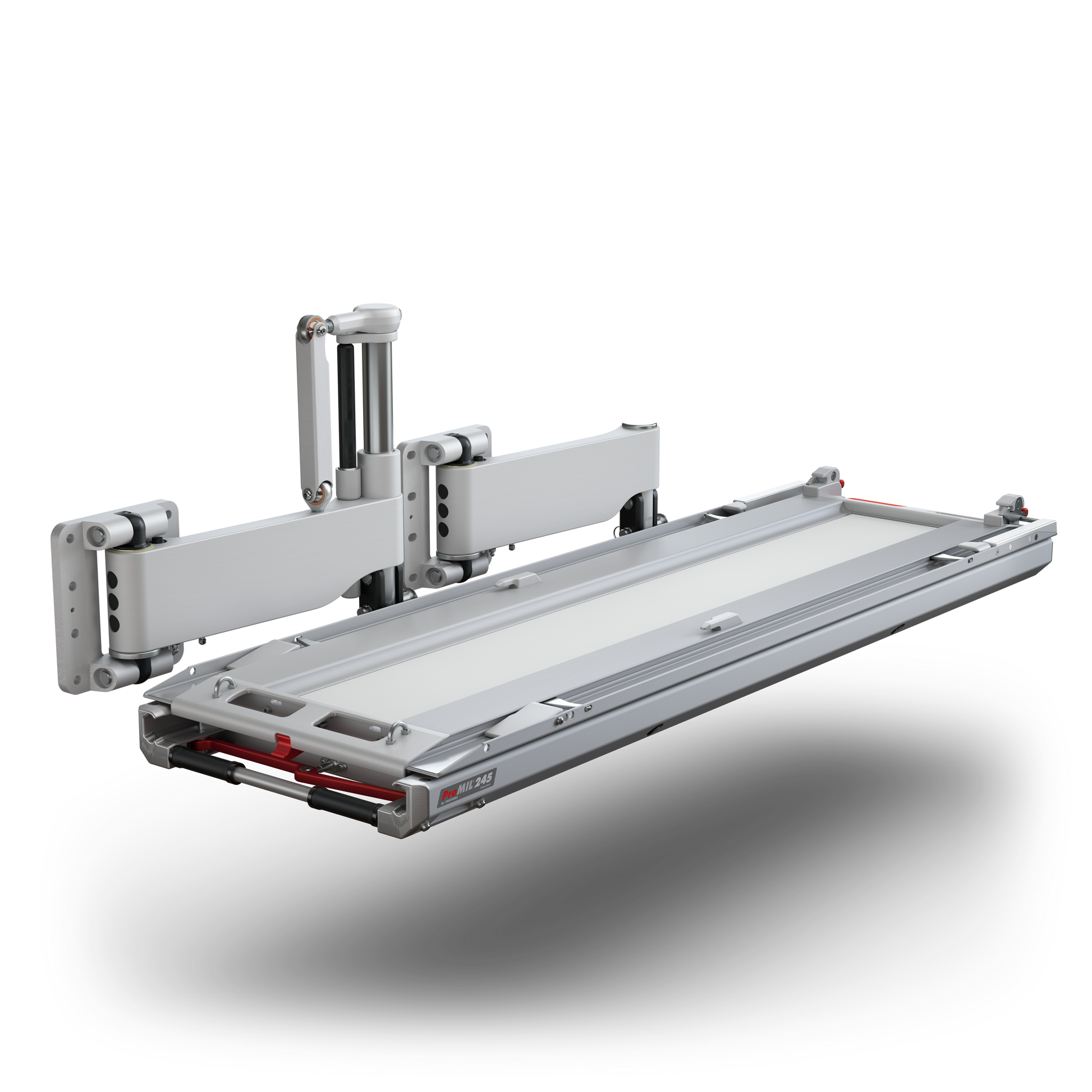

  • Flexible Configurations: The ProMIL 245 can be optimized to fit vehicle hull shapes by adjusting the arm lengths of the tilt and turn mechanism. It also offers multiple operational positions, including transport, forward extended, treatment, loading, and optional folded-up storage position.
  • Robust Construction: Made from anodized aluminum, stainless steel, and steel, the system is built to withstand the most demanding military conditions while ensuring longevity and minimal maintenance.
  • Payload Capacity: Maximum payload of 150 kg, with option to increase to 200 kg under certain conditions.
  • Mine-Blast Safety: The wall-mounted design provides qualified protection against threats such as IEDs and mines.

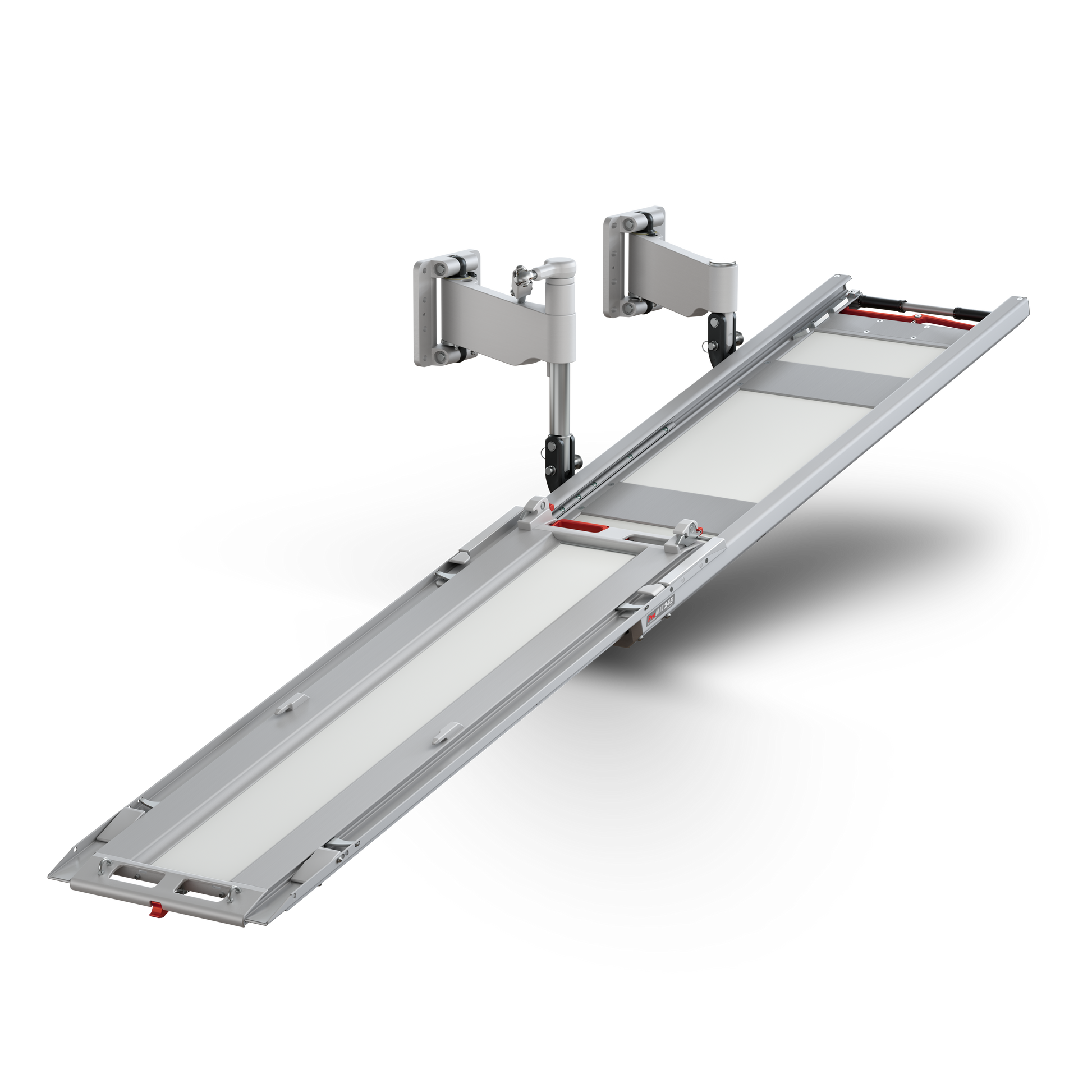

  • User Interface: Simple manual controls, including handles and locking levers, allow for intuitive operation. The platform extends out from the doorway at a slope, facilitating easy patient loading.

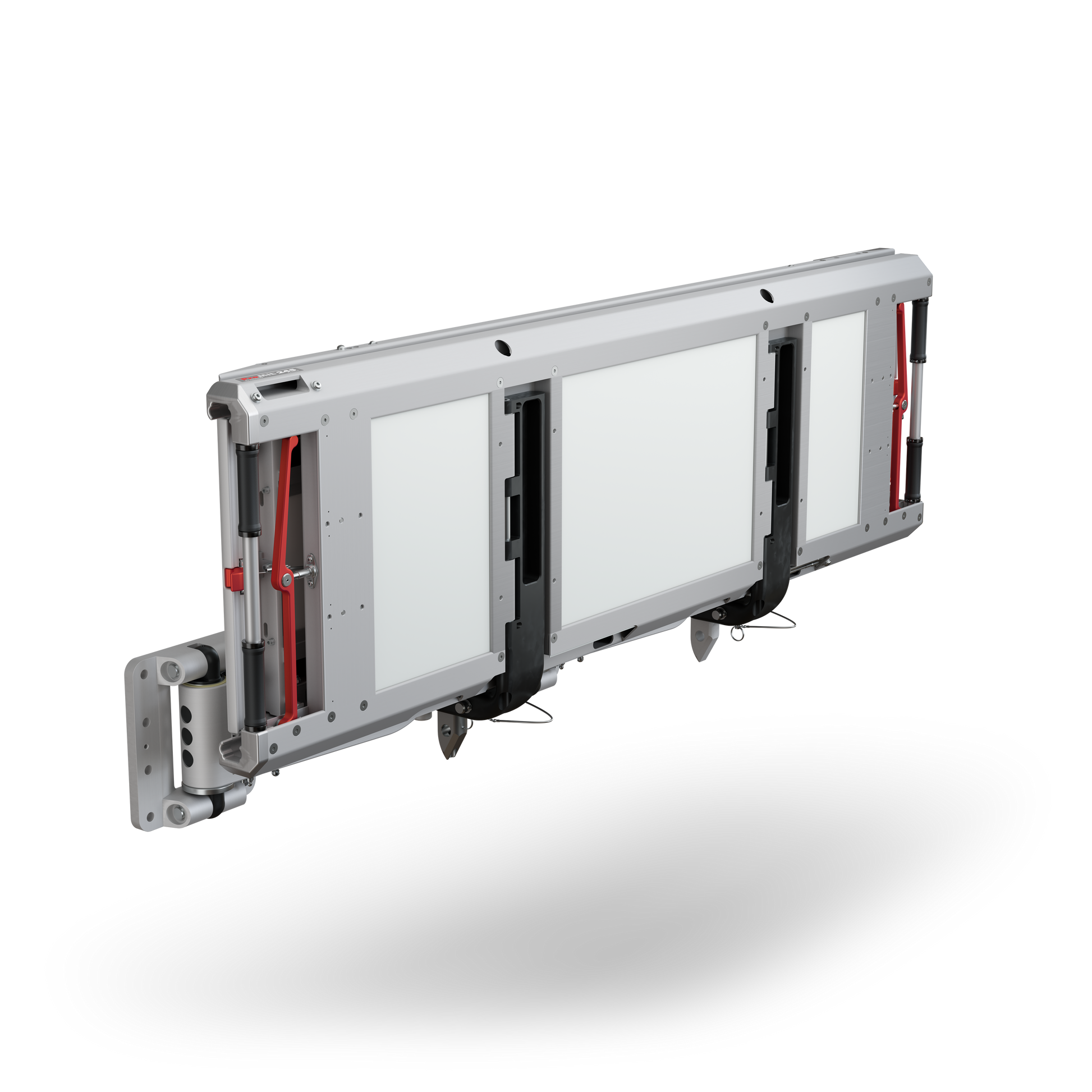

  • Additional Features: An optional foldability feature allows the system to be folded against the vehicle wall, freeing up space for other uses, such as seating.

Technical data

  • Dimensions:
    Minimum (LxWxH) 1918 x 715 x 630 mm in transport position (depending on product configuration).
  • Materials: Anodized aluminum, stainless steel, steel.
  • Weight: Approximately 140 kg
    (depending on product configuration).
  • Loading Angle: Configurable, between 6˚ and 20˚.
  • Operating Temperature: -46°C to +49°C.
