ProMIL 320 Floor mounted Stretcher Loading System

Name: ProMIL 320
Brand: ProMIL
SKU: 39400
Availability: InStock

ProMIL 320 Floor mounted Stretcher Loading System

Contact us about this product

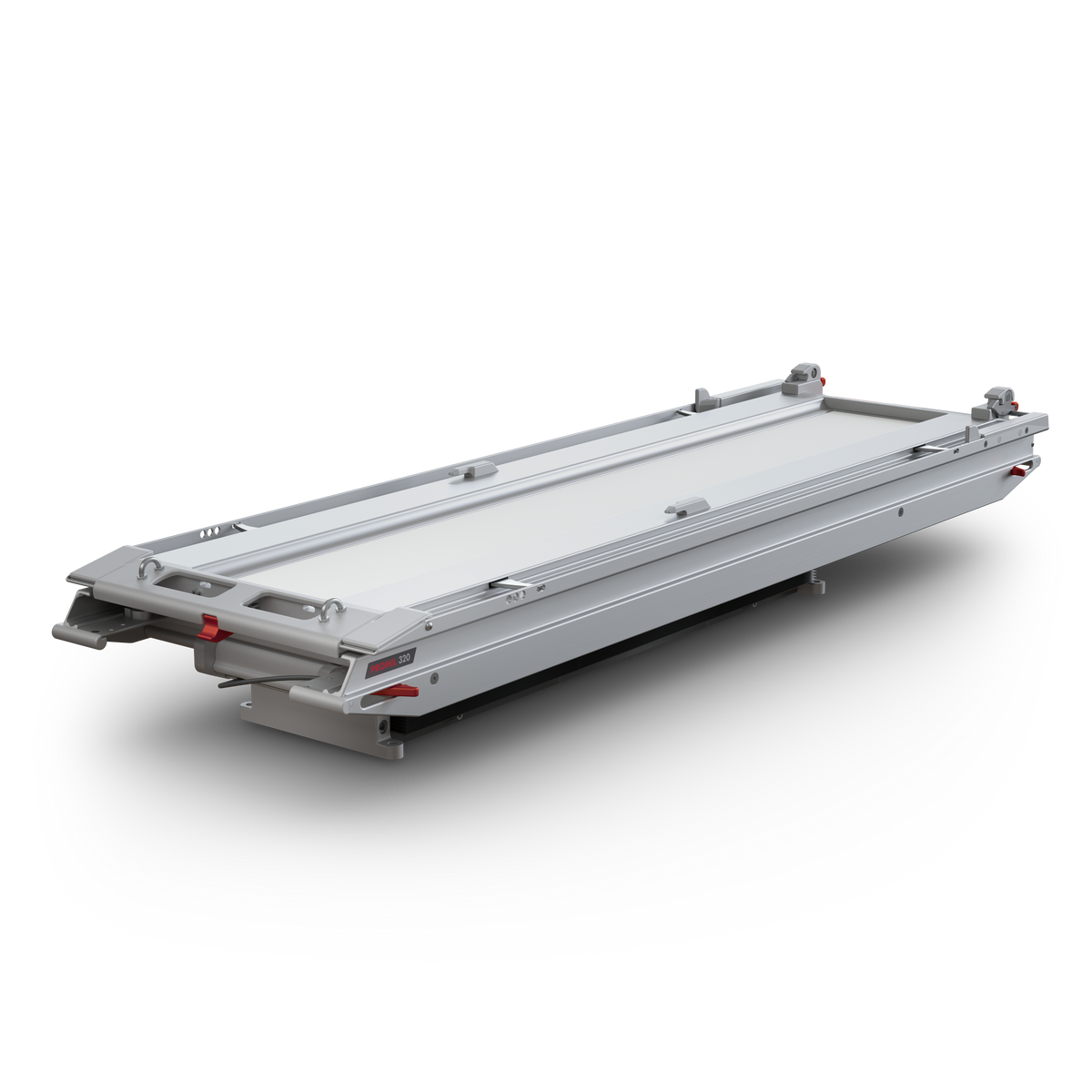

The ProMIL 320 is a floor-mounted stretcher loading system designed for use in rough terrain conditions within tracked or wheeled vehicles.

The system is fully mechanical and does not require any external power, making it extremely reliable. Movements between different positions are manual. The system TILT angle can be configured to fulfill vehicle-specific loading requirements.

By default, the system is equipped with a stretcher platform compatible with both NATO field stretchers and wheeled main stretchers, providing extended loading and sideways sliding capabilities.

Product features

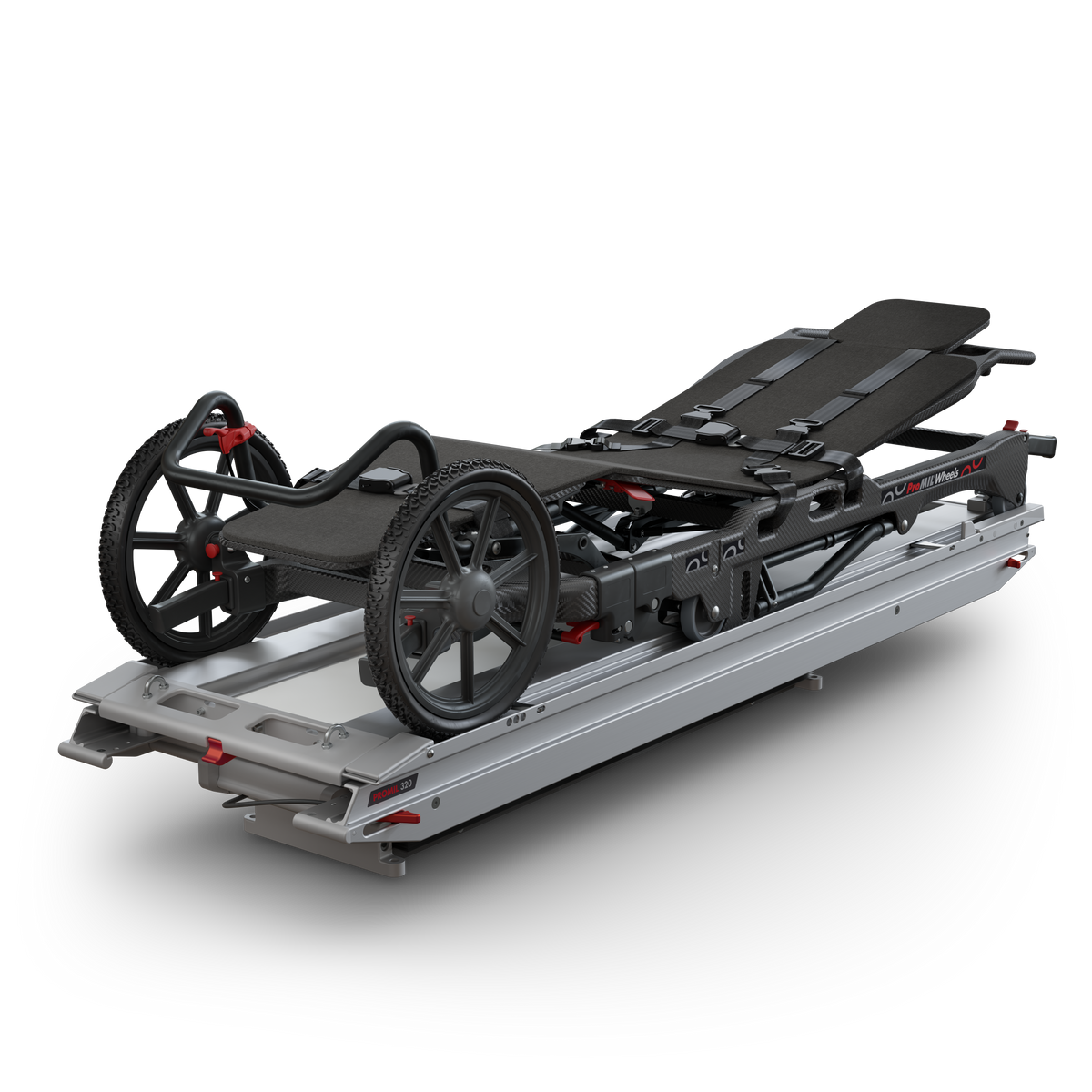

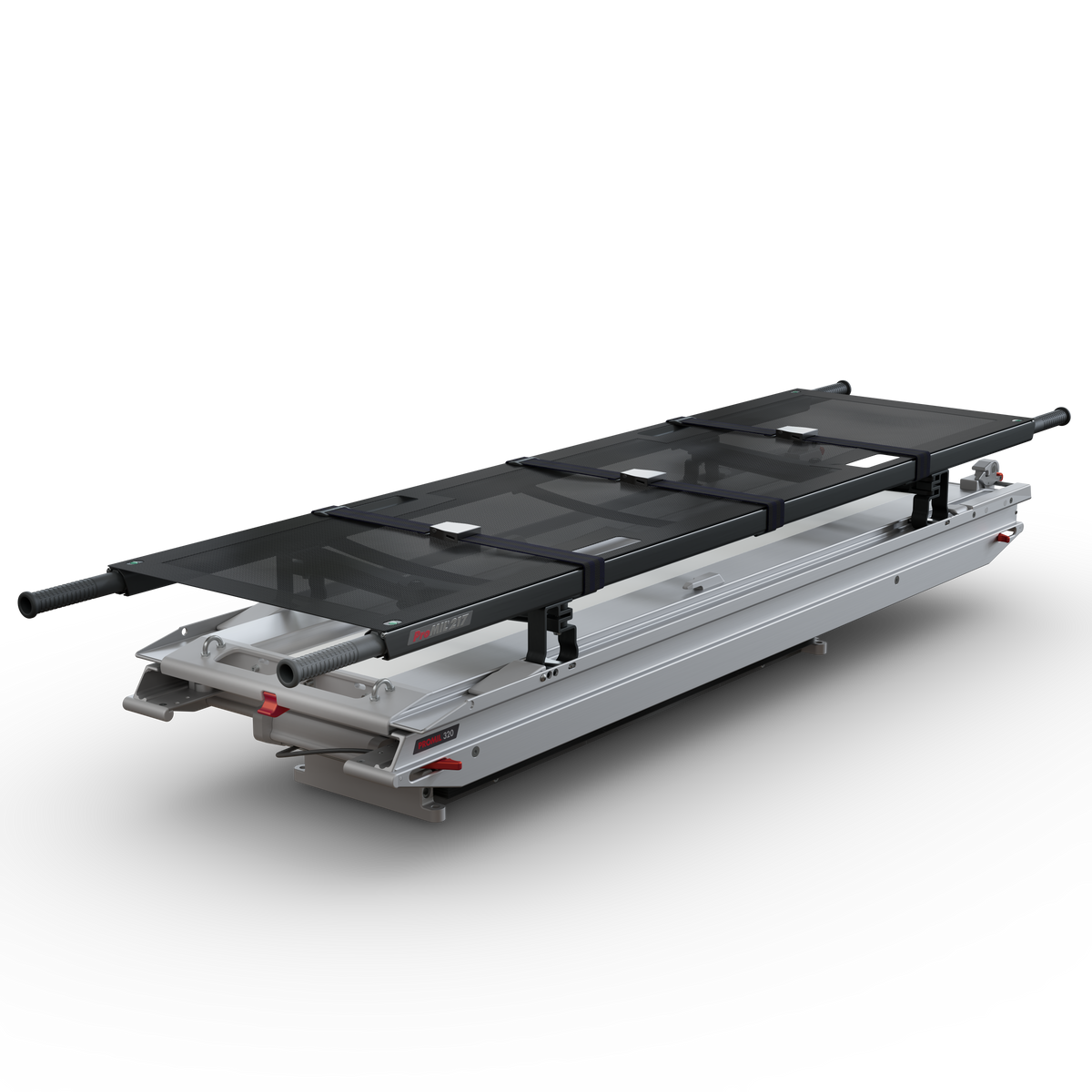

Compatibility: Supports NATO field stretchers complying with AMedP-2.1 (STANAG 2040), as well as wheeled main stretchers such as ProMIL Wheels, Pensi CARBON, and Ergomy CARBON.

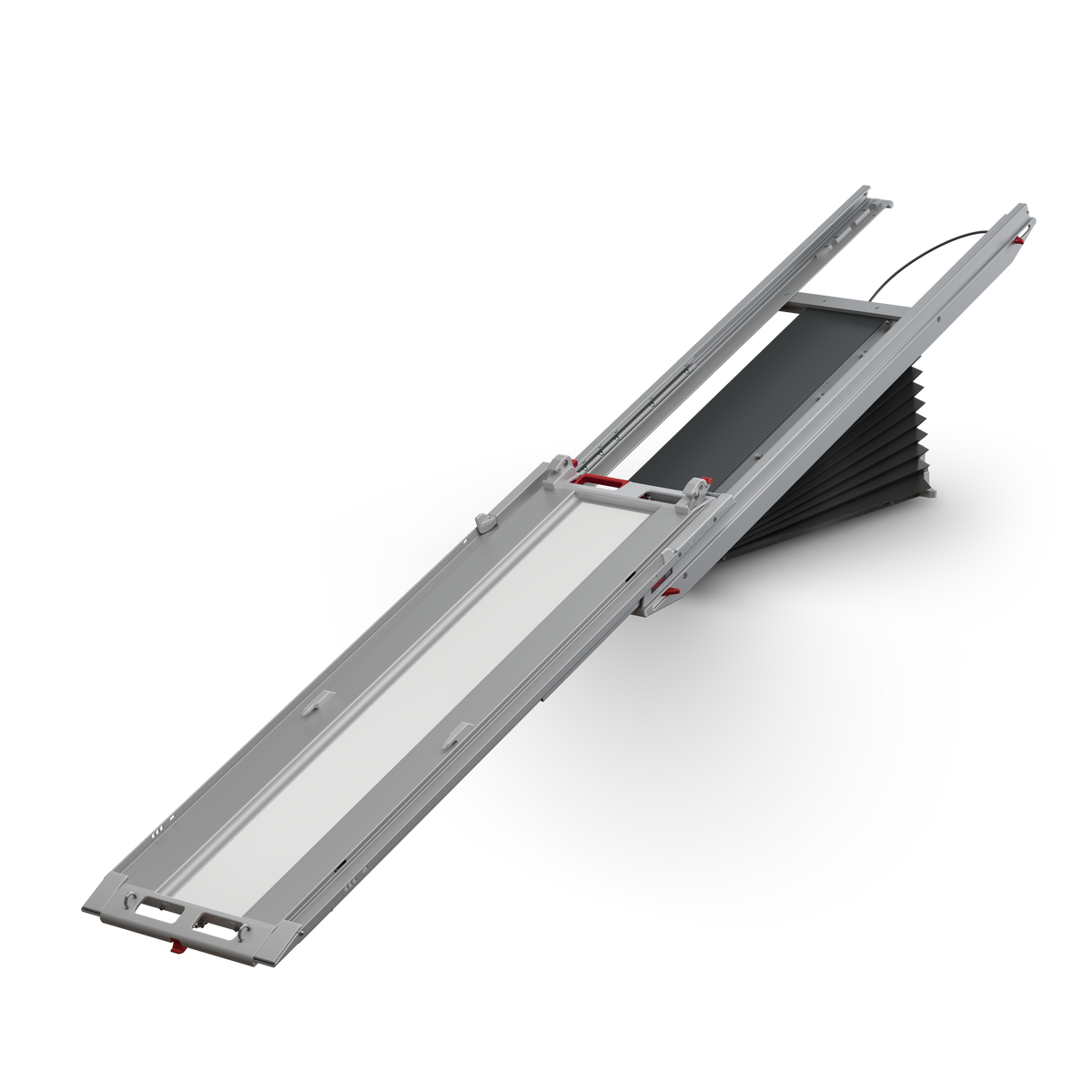

Loading Angle: Up to 22,5° tilt for ergonomic loading.
Locking Mechanism: Automatic stretcher locking with manual backup. Opens automatically when the platform is extended to the loading position and closes when retracted.

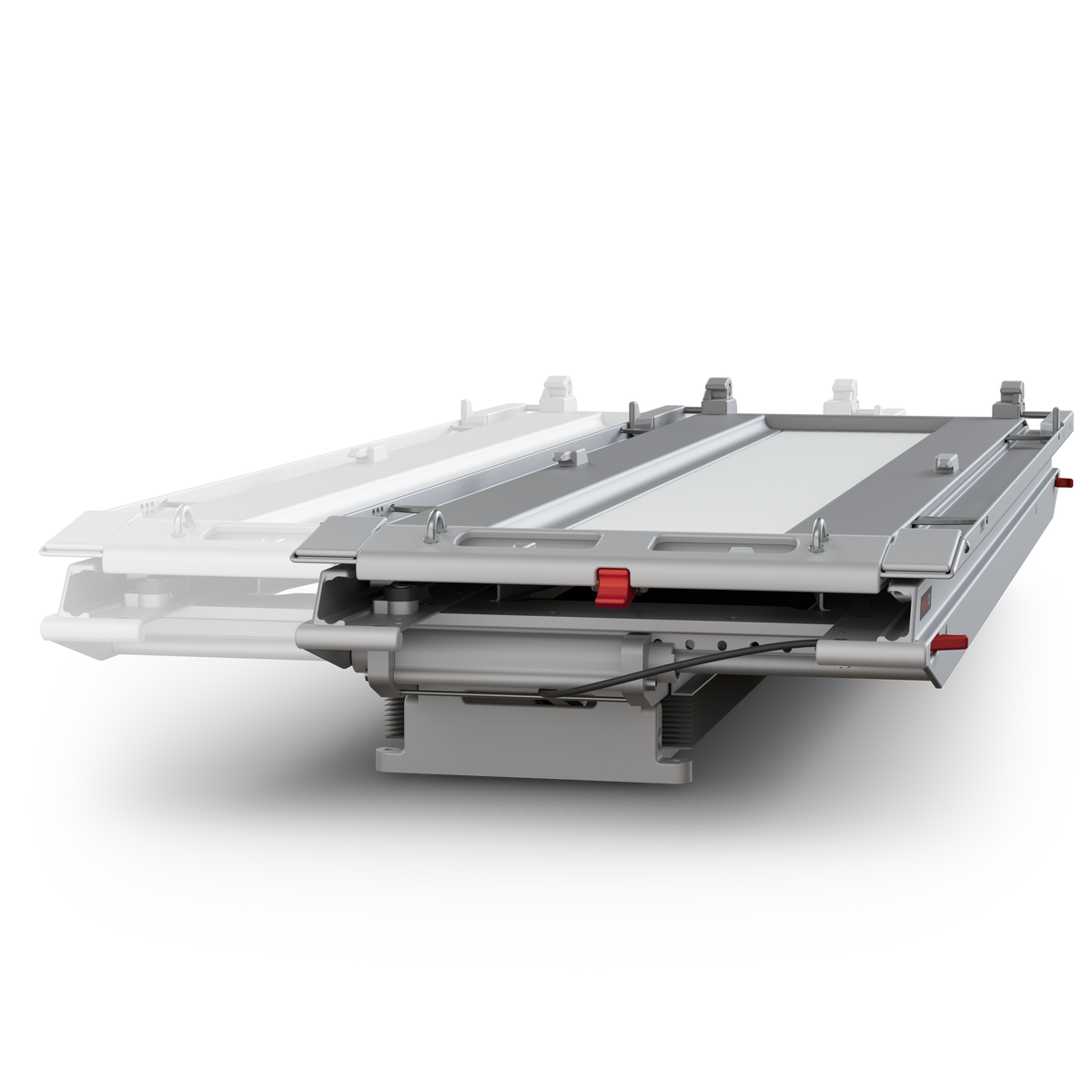

Flexible Positioning: Offers 125 mm lateral displacement each way and 200 mm forward extension, allowing for precise positioning within the vehicle.
Loading Assistant: Gas spring provides 200N of effective assistance force for the retraction of the platform, aiding in both upwards and downwards movements.
