ProMIL 360 Hydraulic Lift Treatment Base with Suspension

ProMIL 360 Hydraulic Lift Treatment Base with Suspension

Contact us about this product

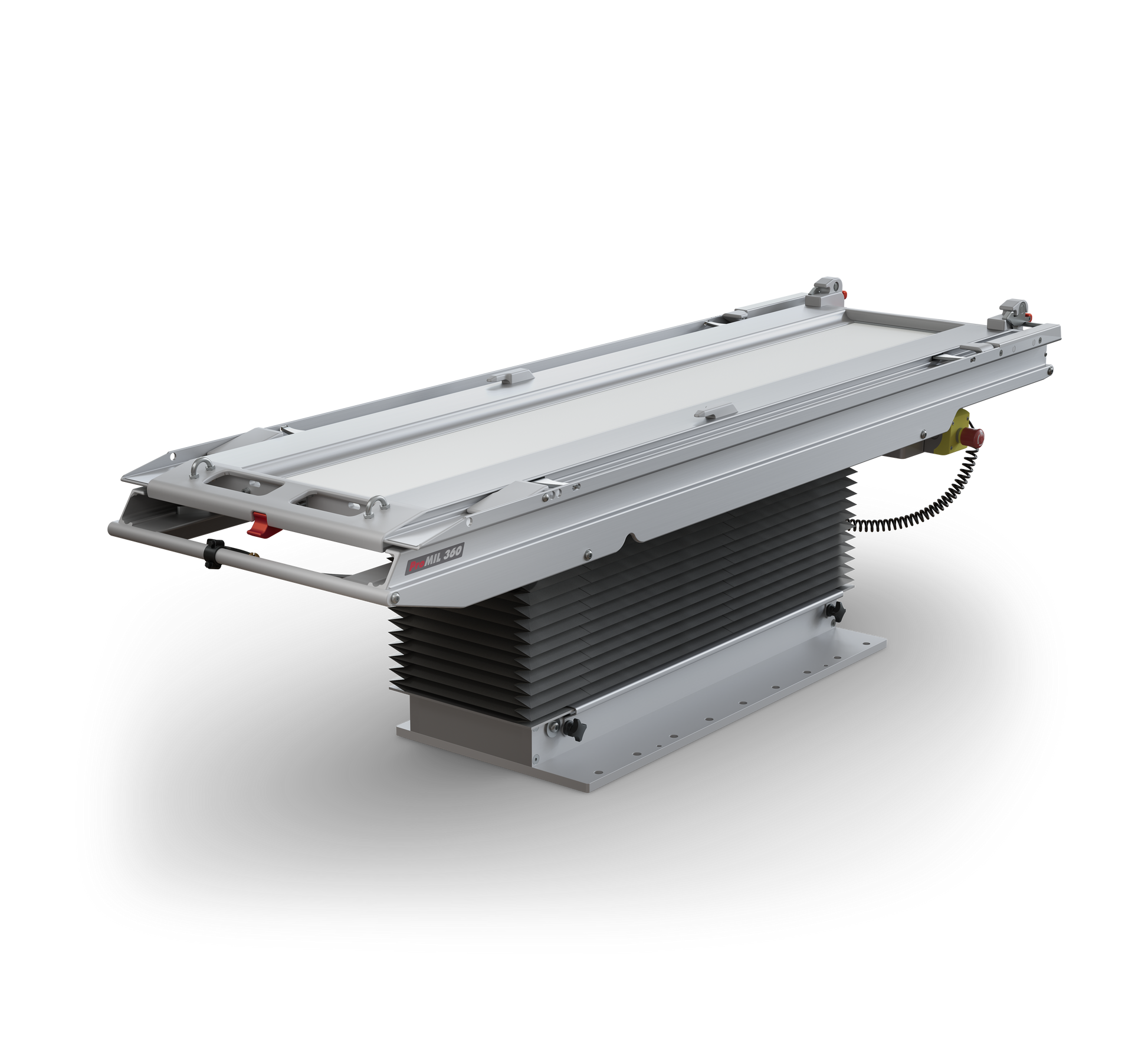

The ProMIL 360 is a treatment base designed for use in rough terrain conditions within tracked or wheeled vehicles. It features duplexed hydro-pneumatic suspension for shock absorption and vertical stabilization, significantly increasing patient comfort and survival possibilities in challenging transport environments.

The system uses an electrically powered hydraulic lift to quickly adjust height, shock, and anti-shock positions. Compatible with both NATO field stretchers and wheeled main stretchers, it also offers extended loading and sideways sliding capabilities.

Product features

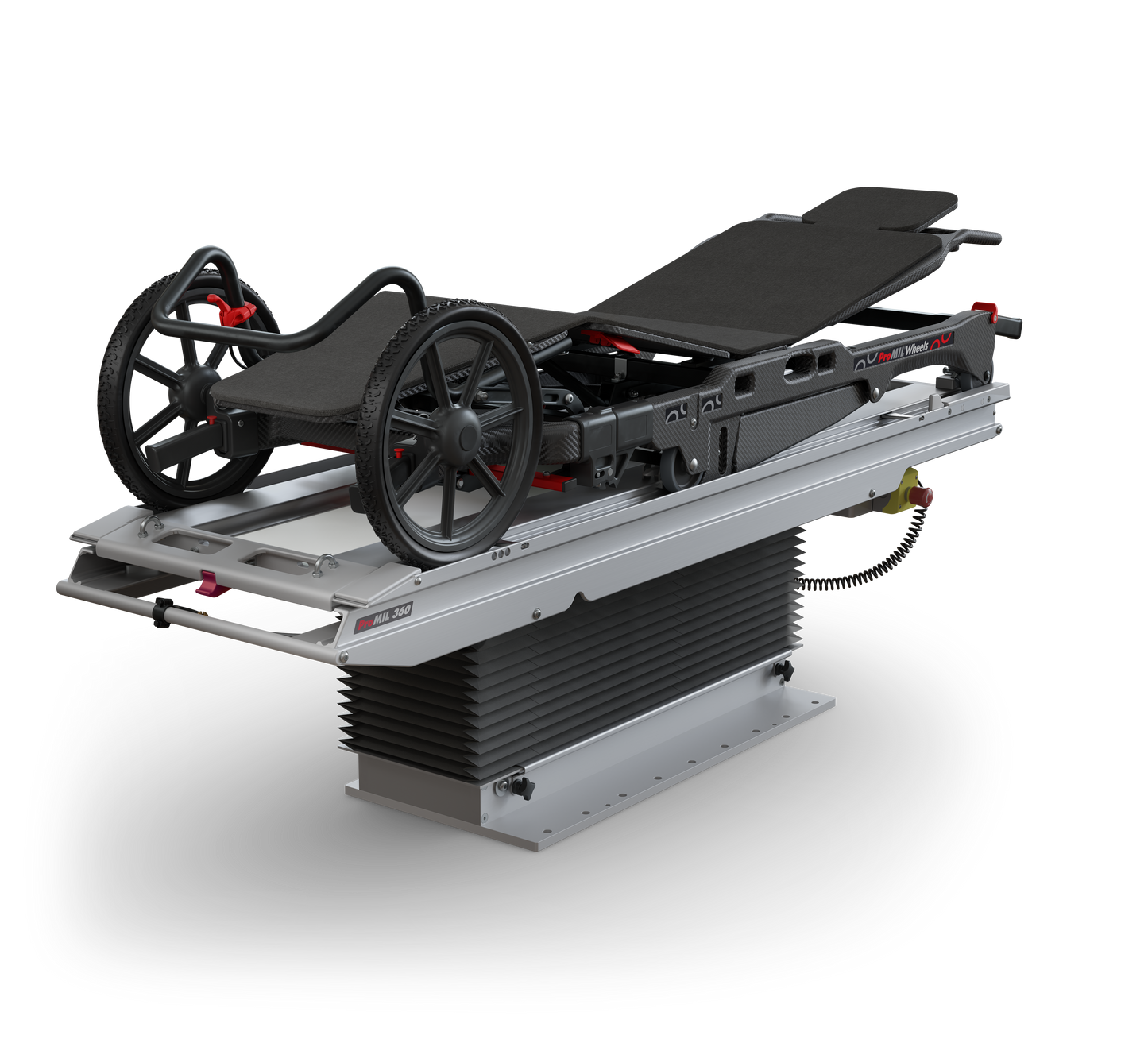

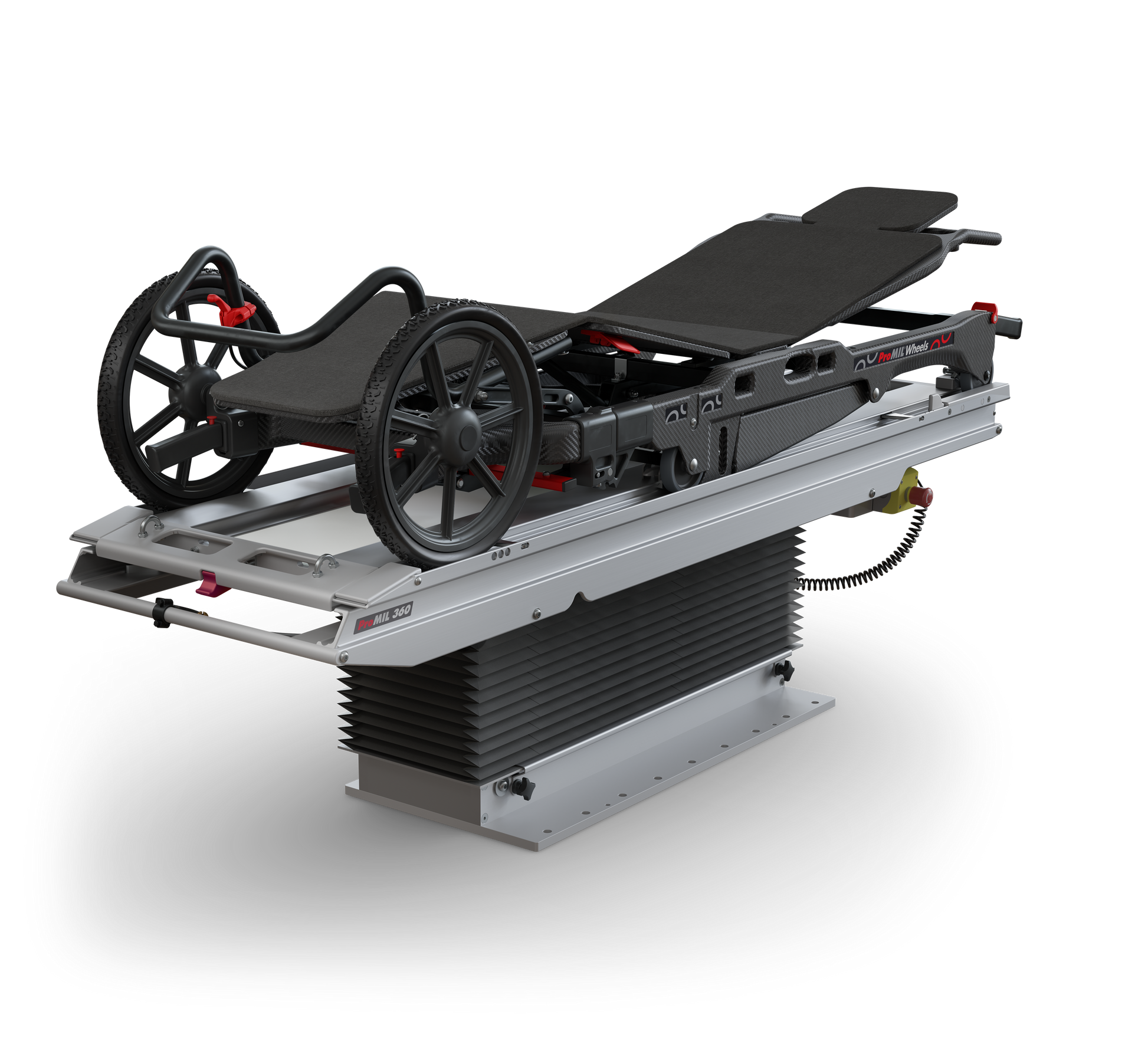

  • Compatibility: Supports NATO field stretchers complying with AMedP-2.1 (STANAG 2040), as well as wheeled main stretchers such as ProMIL Wheels, Pensi CARBON, and Ergomy CARBON.
  • Adjustable Height: Suspension functional height from approximately 400 mm to 600 mm, with maximum travel from 320 mm to 720 mm.
  • Shock Absorption: Duplexed hydro-pneumatic suspension with an average -5.6 dB attenuation of vibration energy for health-critical frequencies (0-80Hz).
  • Remote Control: Wired remote for height, tilt, and suspension adjustments.
  • Loading Angle: 16° head up for ergonomic loading; 6° head down for shock position.

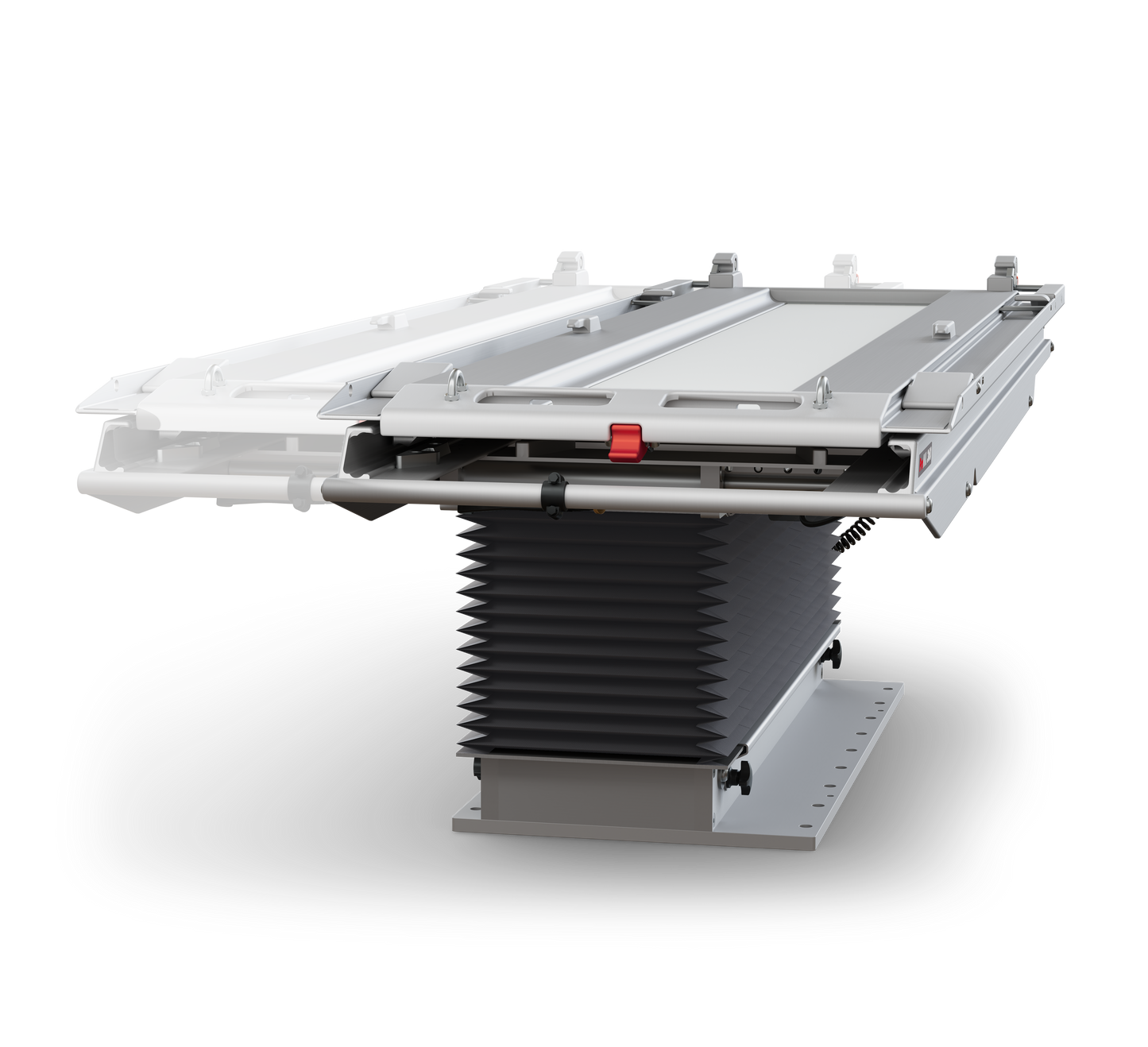

  • Flexible Positioning: Offers 125 mm lateral displacement each way and 200 mm forward extension, allowing for precise positioning within the vehicle.

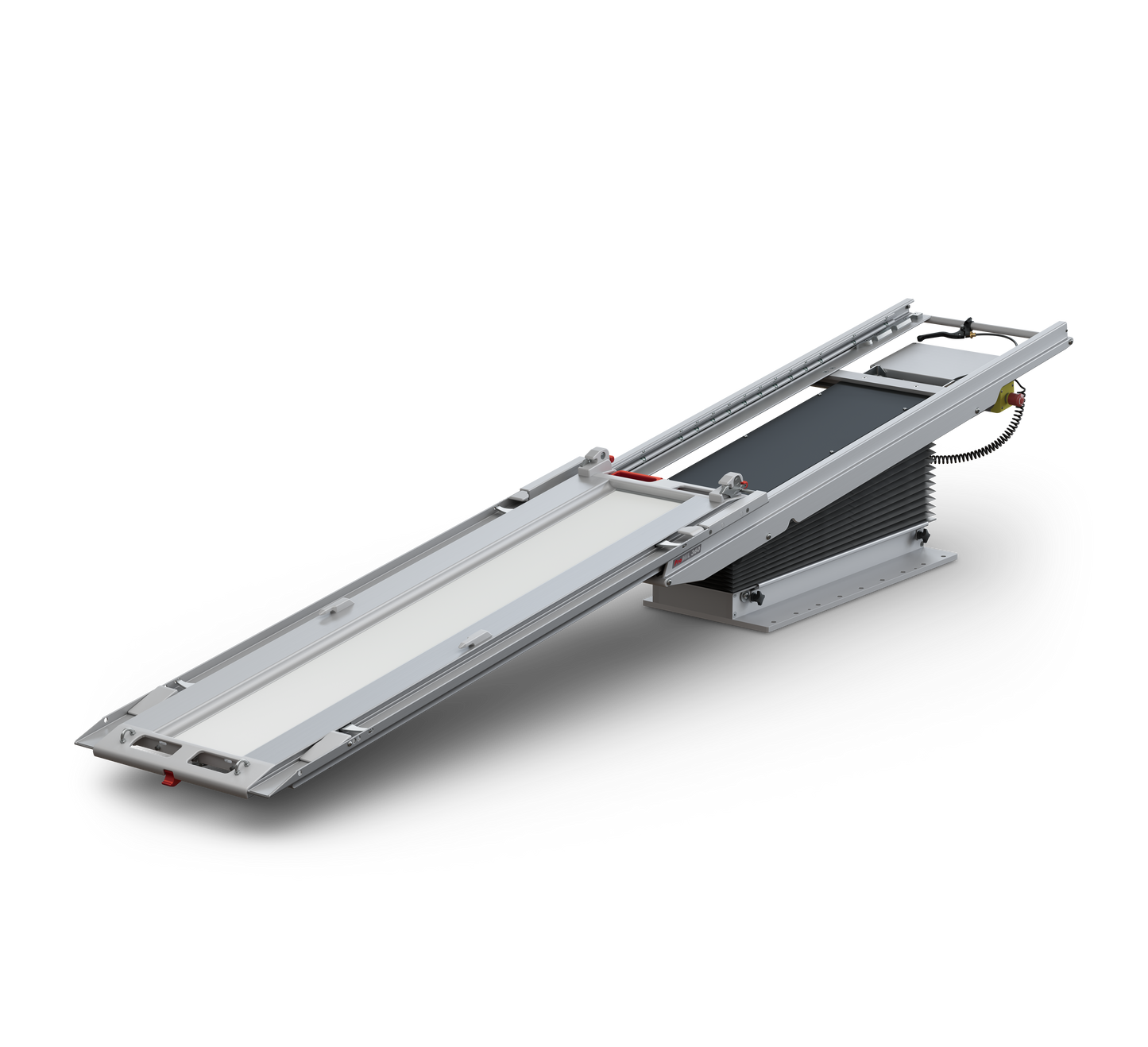

  • Loading Assistant: 250N gas spring assistance for platform retraction.
  • Locking Mechanism: Automatic with manual backup; opens/closes with platform movement.

Technical data

  • Materials: Anodized aluminum, stainless steel and steel.
  • Weight: 155 kg.

Power Requirements: DC 20-30V, 25A
