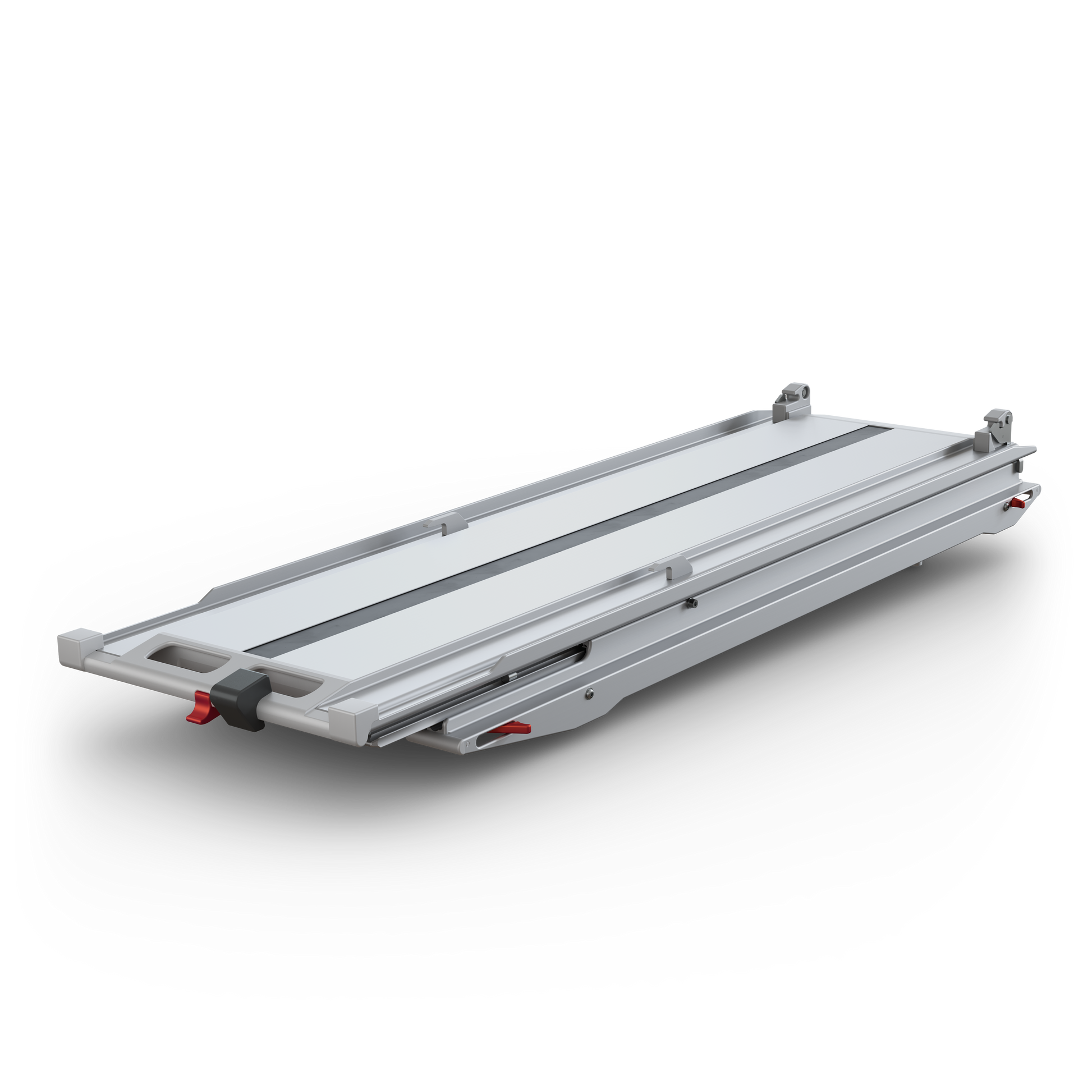

  • Ergomy Basic stretcher loading system in transport position

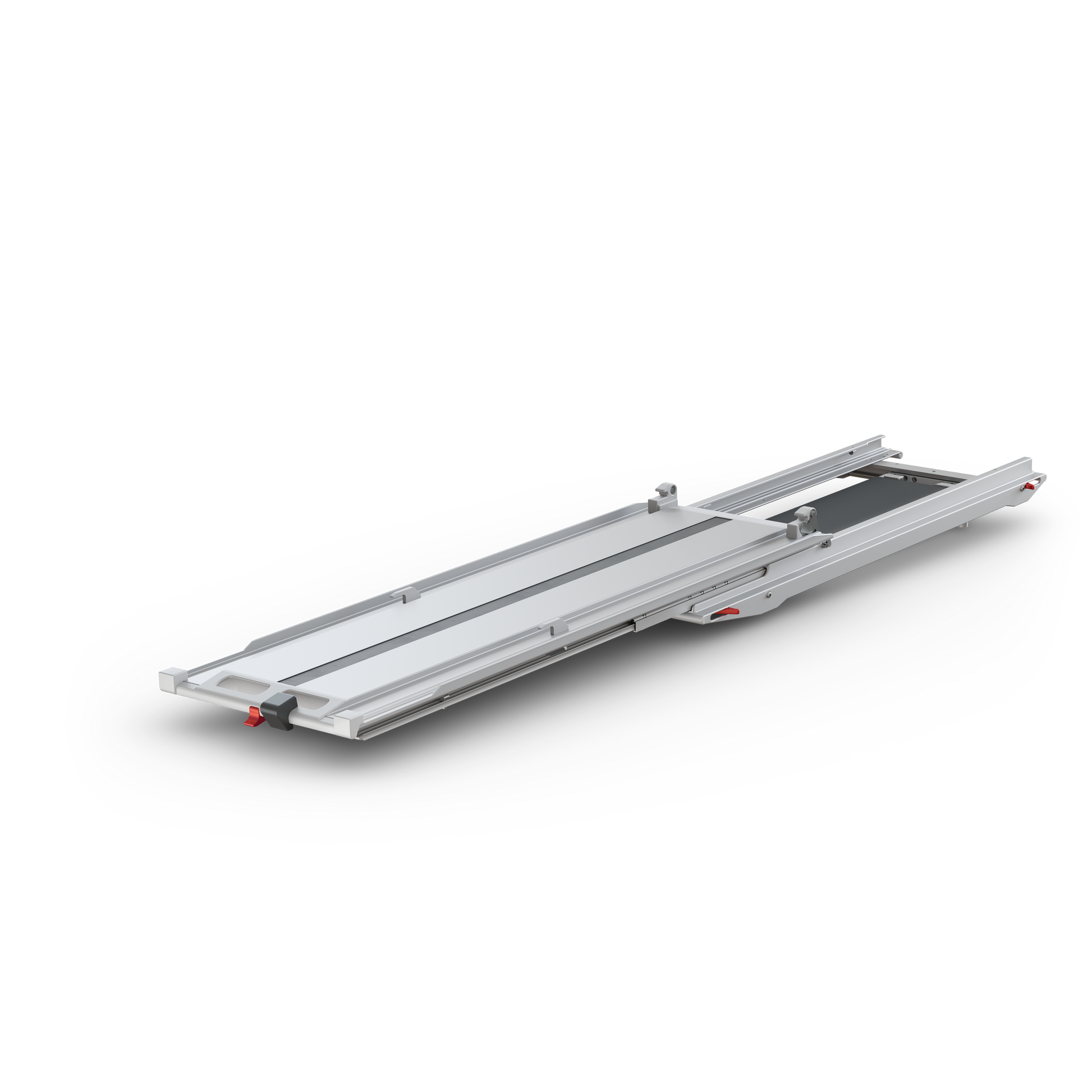

  • Ergomy Basic stretcher loading system in loading position

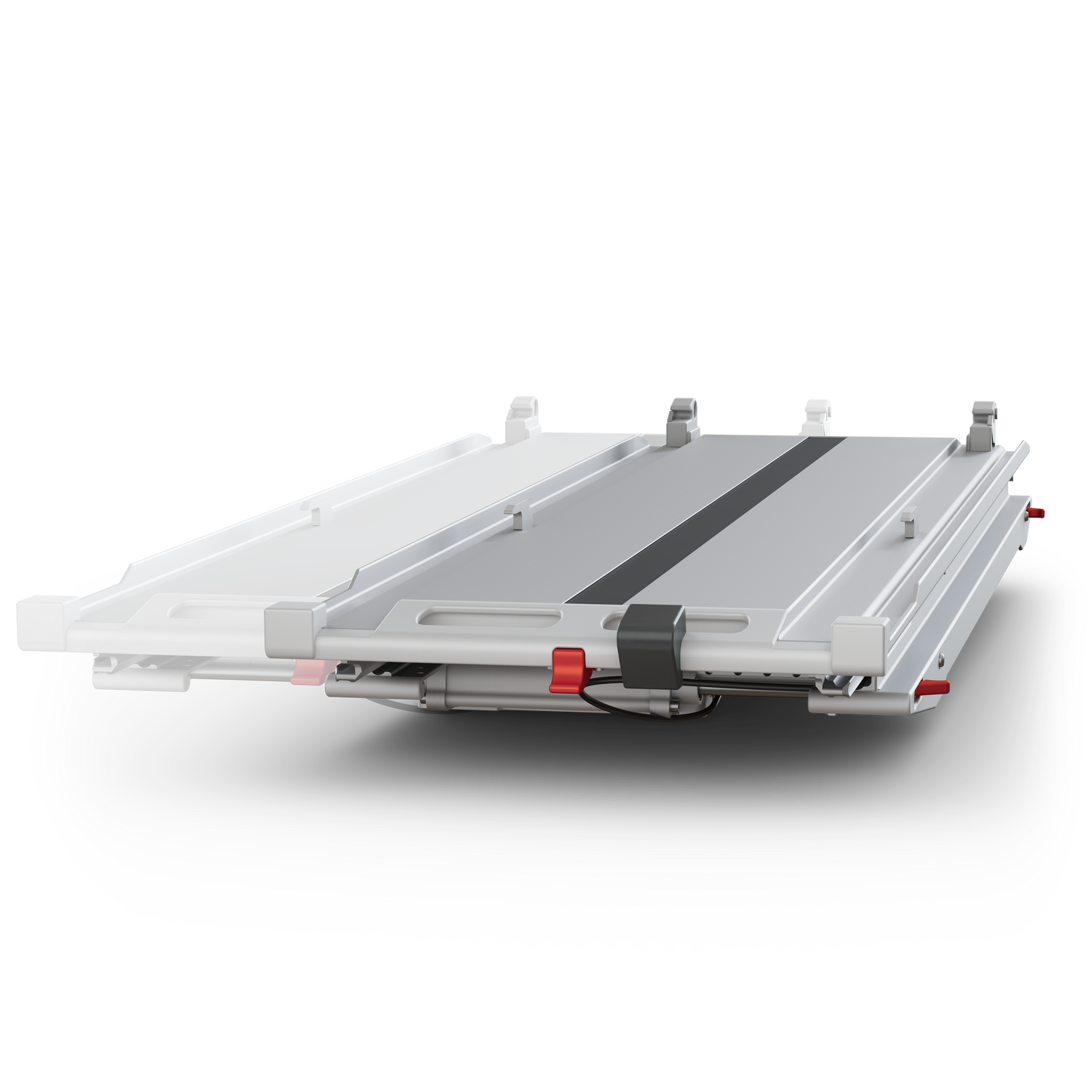

  • Ergomy Basic stretcher loading system sideways adjustments

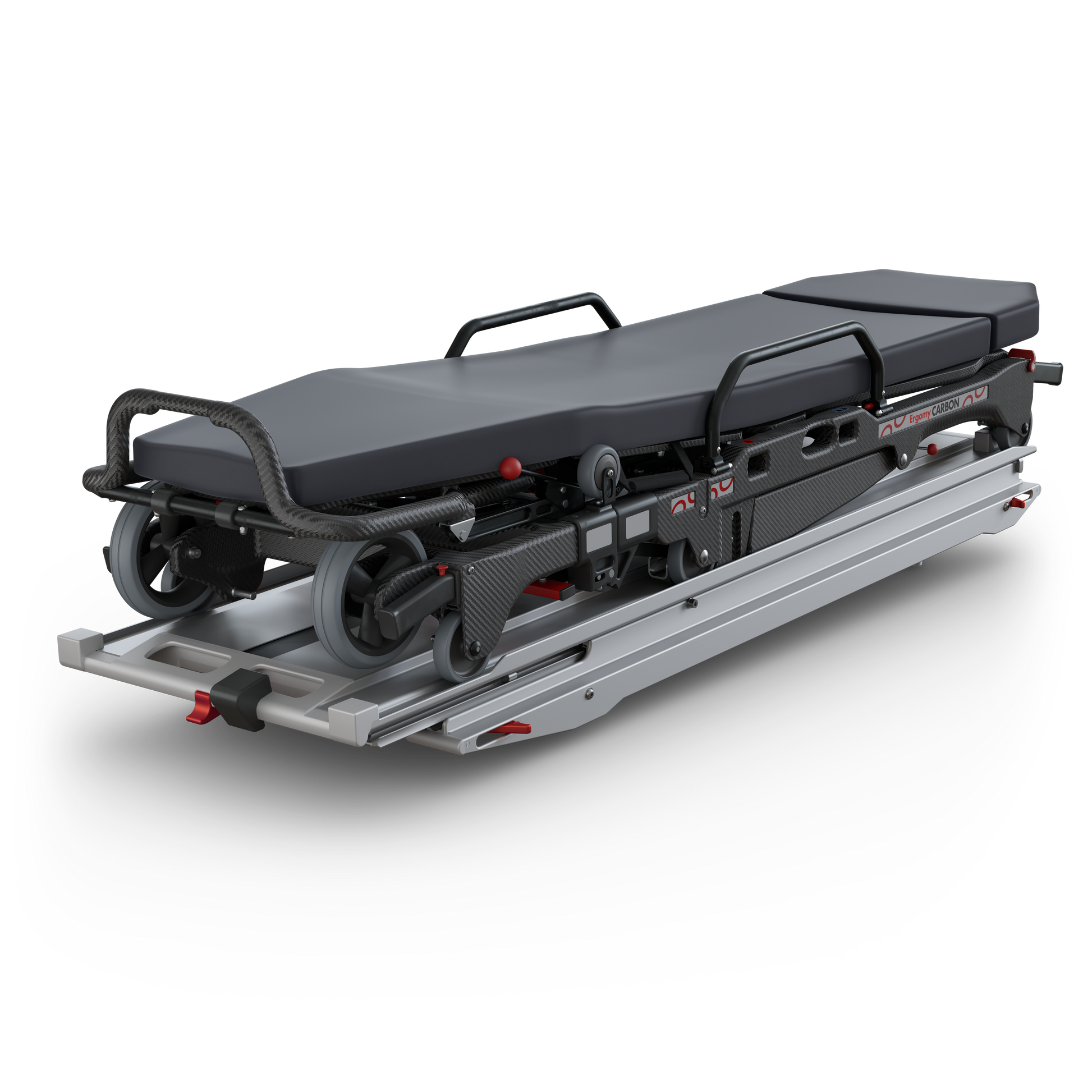

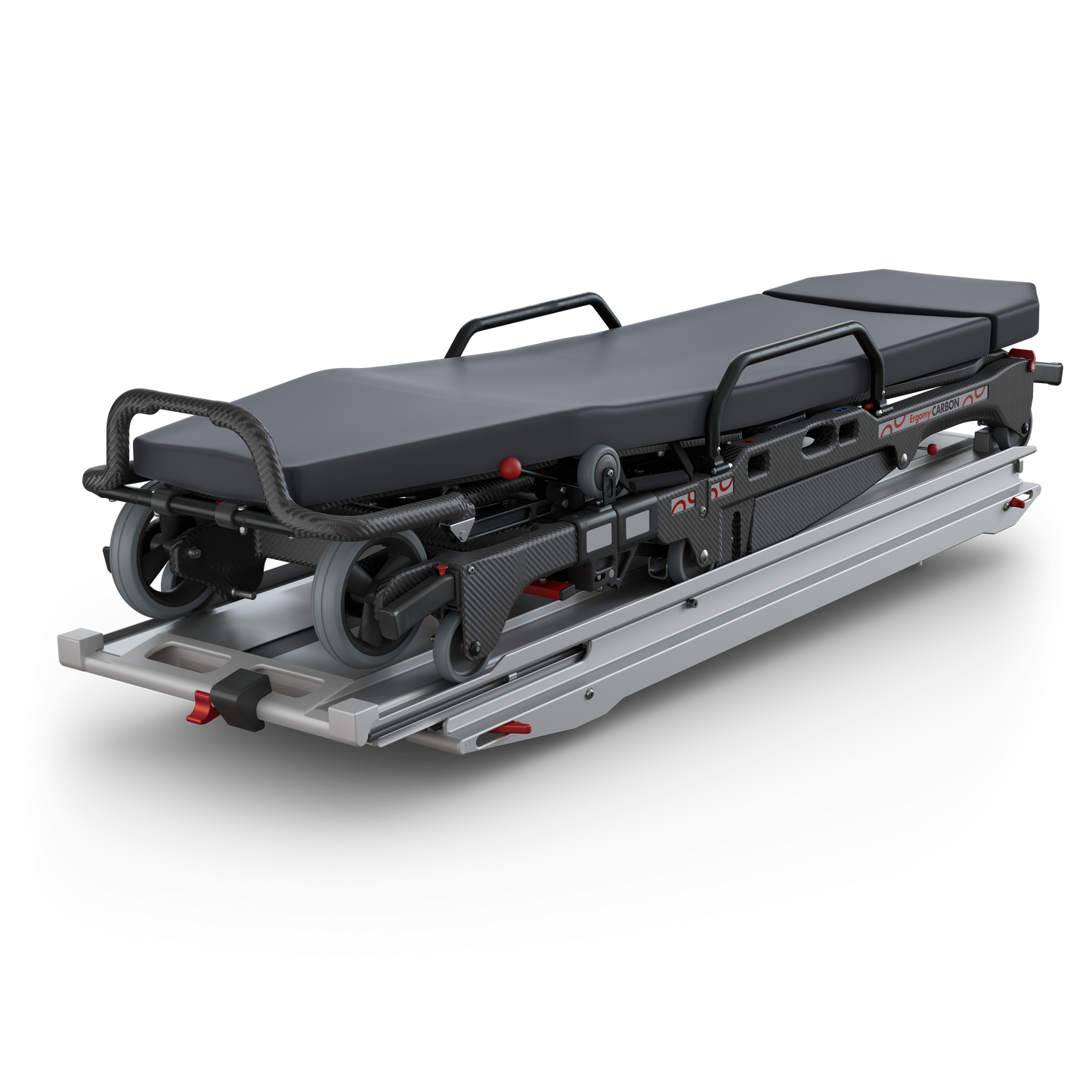

  • Ergomy Basic stretcher loading system loaded with Ergomy Carbon stretcher
1 4

Ergomy Basic Sideways Sliding Stretcher Platform

Ergomy Basic Sideways Sliding Stretcher Platform

Contact us about this product

The Ergomy BASIC is a manual stretcher loading system designed for patient transport in civilian ambulances and other patient transfer vehicles. This system provides a simple and reliable solution for loading and unloading patients to relatively low vehicle types, without the need for electrical assistance.

Compatible with civilian main stretchers, the Ergomy BASIC offers a practical and durable option for medical professionals, and ensures safe and efficient patient handling in emergency and non-emergency medical transport settings.

Product features

  • Compatibility: Supports wheeled main stretchers, with automatic locking and semi-automatic release mechanisms for secure transport.
  • Manual Operation: Entirely manual, with no electrical components, ensuring simplicity and reliability in various conditions.
  • Configurable Loading Angle: The loading height and angle can be configured between 2˚ and 4˚ during vehicle integration, accommodating different vehicle designs (floor heights).
  • Durable Construction: Made from anodized aluminum and stainless steel, the system is built to withstand heavy use with minimal maintenance.
  • Flexible Positioning: Offers 120 mm lateral displacement each way and 300 mm forward extension, allowing for precise positioning within the ambulance.
  • Safety Standards: Compliant with EN 1865-5 and EN 1789:2020 dynamic testing, ensuring rigorous safety and performance standards are met.
  • Robust Capacity: Handles up to 230 kg payload.
  • User Interface: Simple and intuitive controls for sliding movement release and sideways adjustments.
  • Service Life: Up to 8 years with regular manufacturer-approved maintenance and critical component replacement schedules.

Compatibility

Technical data

  • Dimensions:
    Minimum (LxWxH) 1873 x 585 x ~250 mm in transport position;
    Maximum (LxWxH) 2890 x 585 x ~250 in loading position.
  • Weight: Approximately 65 kg.
  • Loading Angle: Static, between 2˚ and 4˚.
  • Operating Temperature: -35°C to +49°C.
  • Certification: MDR Class I certification coming in 2025
