Ergomy Total Power Assisted Stretcher Loading System

Ergomy Total Power Assisted Stretcher Loading System

Contact us about this product

Log in or create an account to order this product.

Ergomy TOTAL is an advanced stretcher loading system designed specifically for use in civilian ambulances and other patient transfer vehicles. It facilitates seamless loading and unloading of patients with minimal physical effort, thanks to electrical assistance. The system is compatible with various wheeled main stretchers, ensuring versatility and ease of use for medical professionals.

Ergomy TOTAL ensures safe, efficient, and ergonomic patient handling, significantly improving the operational workflow in emergency and non-emergency medical transport settings.

Product features

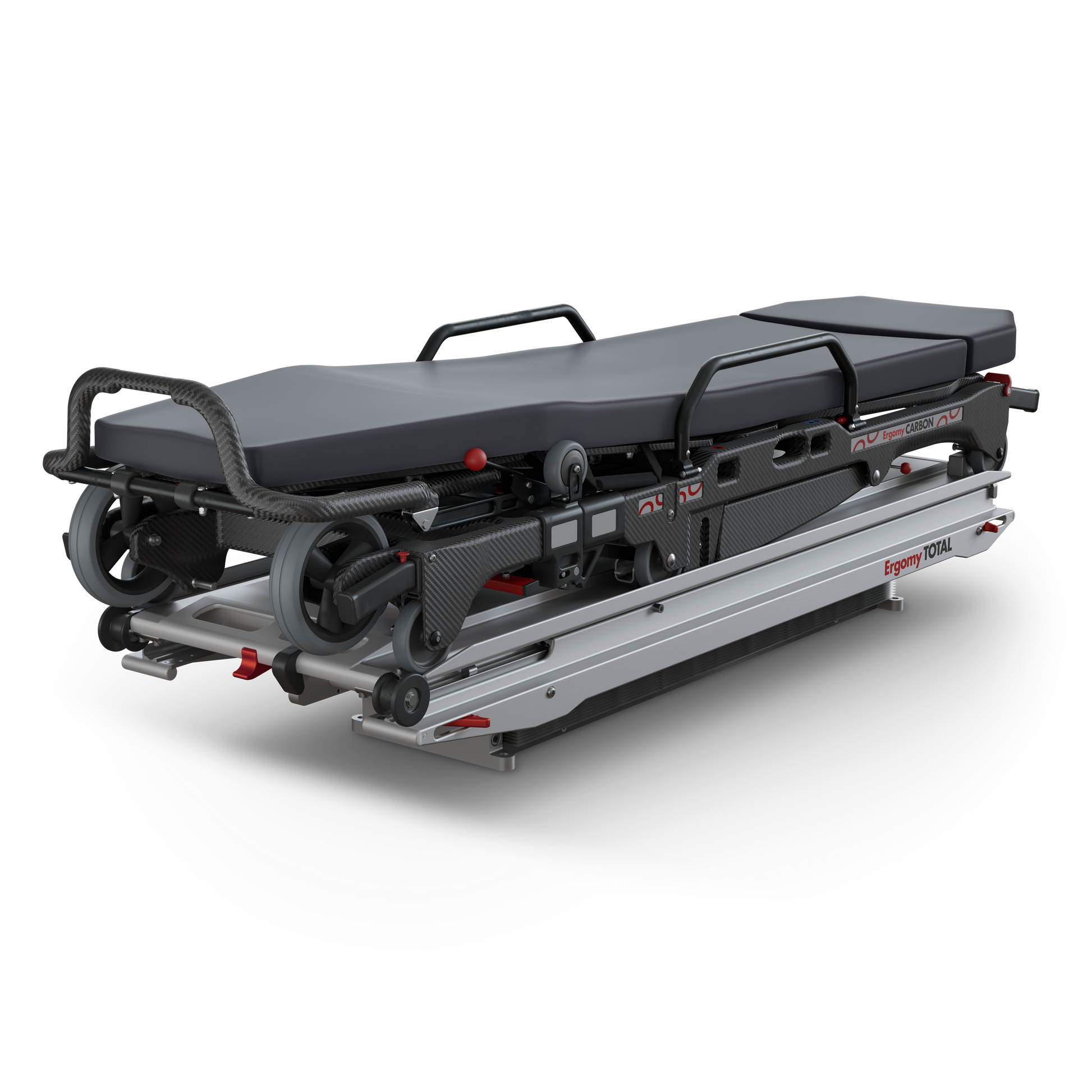

  • Compatibility: Supports a range of wheeled main stretchers, with automatic locking and semi-automatic release mechanisms for secure transport.
  • Electronic Assistance: Electric motors for tilting the platform and driving the hook mechanism, all controlled via a wireless remote for effortless operation.
  • Ergonomic Design: Adjustable loading height with a loading angle of 0˚ to 16˚ and a laser pointer for displaying the optimal loading height.
  • Durable Construction: Made from anodized aluminum and stainless steel, the system is built to withstand heavy use with minimal maintenance.

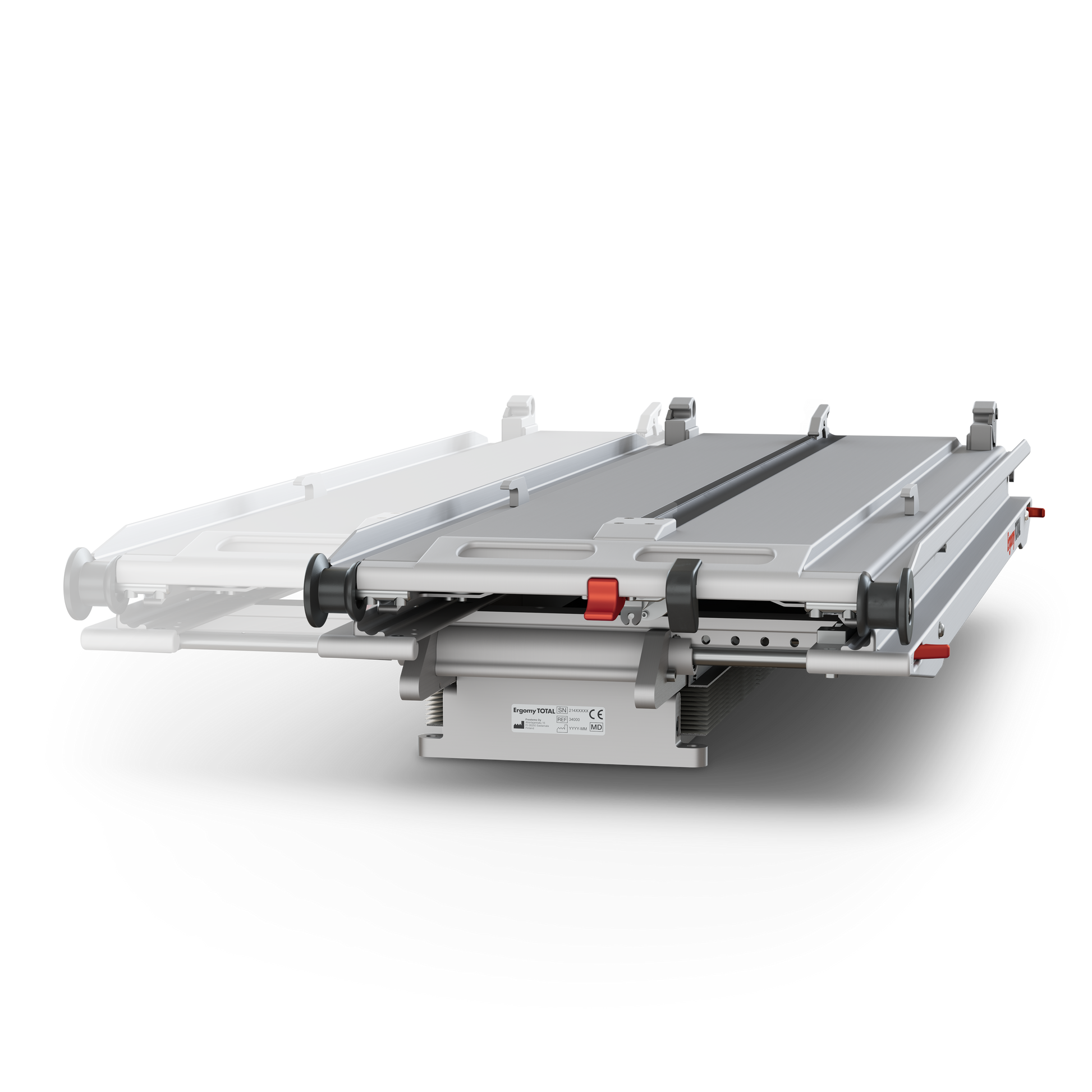

  • Flexible Positioning: Offers 120 mm lateral displacement each way and 300 mm forward extension, allowing for precise positioning within the ambulance.
  • Safety Standards: Compliant with EN 1865-5 and EN 1789:2020 dynamic testing, ensuring rigorous safety and performance standards are met.
  • Robust Capacity: Handles up to 230 kg payload with user assistance and up to 160 kg autonomously.
  • User Interface: Simple and intuitive controls for sliding movement and sideways adjustments. Wireless remote for electrical movements.
  • Service Life: Up to 8 years with regular manufacturer-approved maintenance and critical component replacement schedules.

Technical data

  • Dimensions:

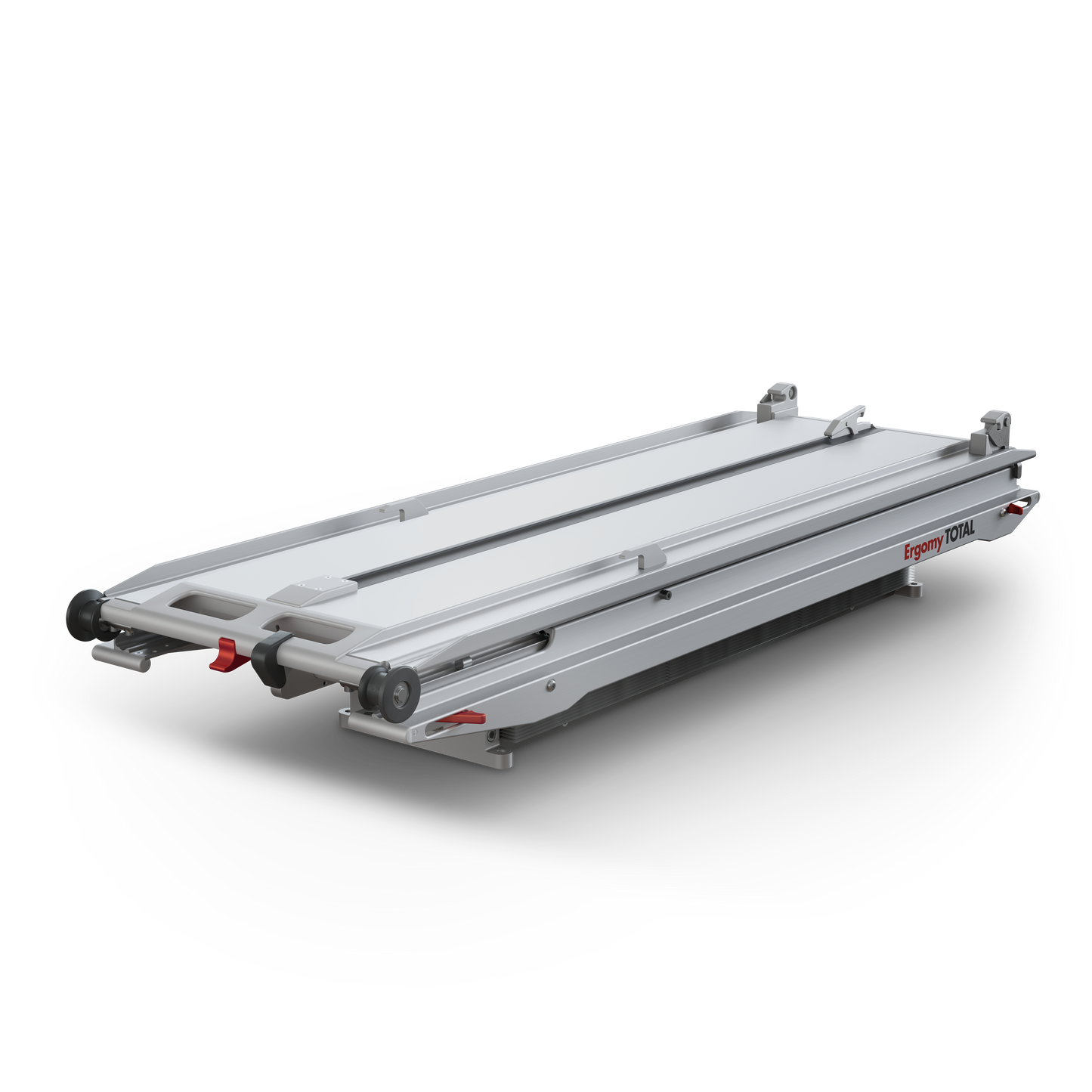

    Minimum (LxWxH) 1709 x 585 x 315 mm in transport position;

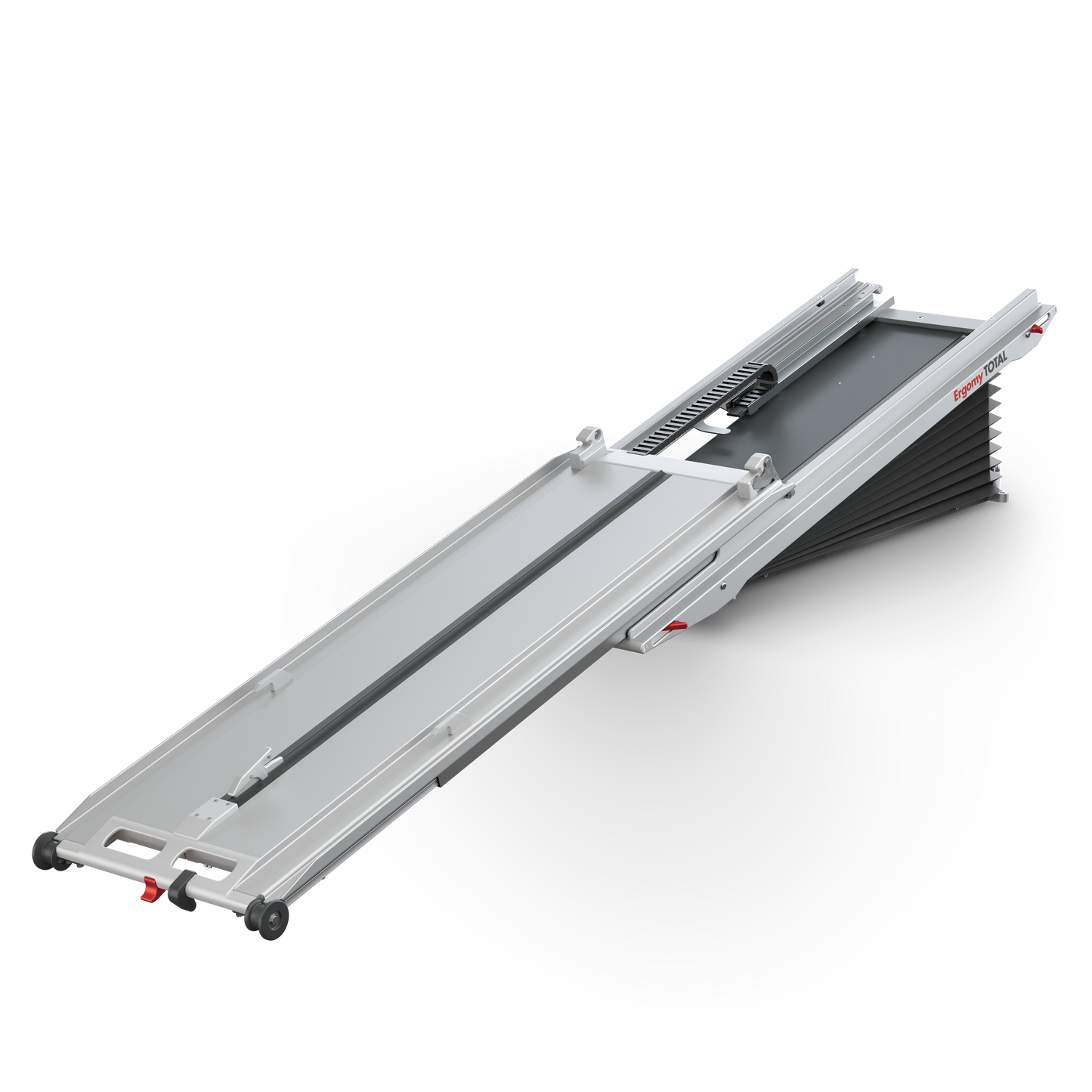

    Maximum (LxWxH) 2850 x 585 x ~900 mm in loading position.
  • Weight: Approximately 95 kg.
  • Loading Angle: Adjustable, between 0˚ and 16˚.
  • Power: 12V DC, max 30A, with a 50A fuse required in the vehicle.
  • Operating Temperature: -25°C to +40°C.
